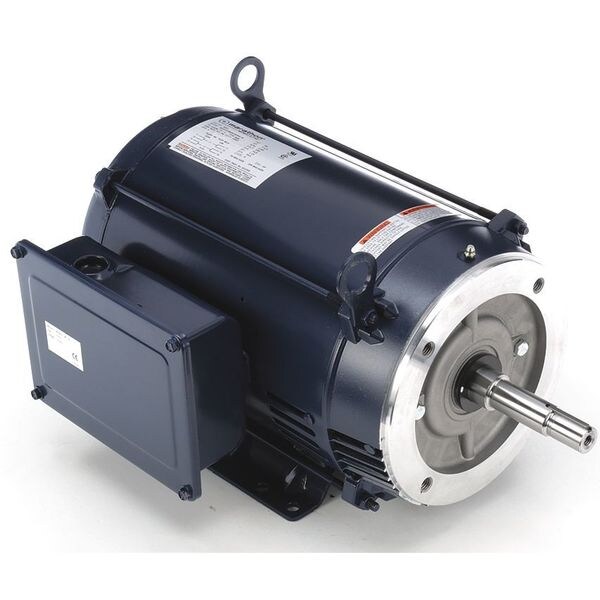

Close-Coupled Pump Motor7.5 HP, 1733 rpm

  • Mfr # 215TBDW7029

  • Zoro # G5684725

product price:  $1,673.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
HP
7 1/2
RPM Range
1,701-1,800
Nameplate RPM
1,735
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
215TBDW7029
Zoro #
G5684725
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Overall Length
19 15/16 in
Length Less Shaft
15 11/16 in
Shaft Length
4 1/4 in
Height
11 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
9.5 in
Frame Size
215JM
Shaft Diameter
7/8 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
9.5 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start/Run
HP
7 1/2
RPM Range
1,701-1,800
Nameplate RPM
1,735
Voltage
230V AC
Frame
215JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Frame Material
Steel
Ins. Class
F
Hz
60 Hz
Full Load Amps
34.5
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
84 %
Motor Thermal Protection
None
Standards
CE, CSA, UL Recognized
Motor Application
Pump
Motor Shaft Design
JM Threaded
Motor Sub Application
Close-Coupled Pump
Motor Efficiency Group
Standard Efficient
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Phase
Single
Motor Enclosure Design
Open Dripproof
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
NEMA Design
L
Conduit Box Location
Exterior
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Weight
120 lb
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Shaft Type
JM Threaded
Frequency
60 Hz
Application
Pump
Number of Speeds
1
Shaft Thread Type
JM
Insulation Class
F
Mounting Position
Horizontal
Full Load Current @ 60 Hz
34.5 A
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Threaded
NEMA Design Class
L

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 34.5, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated No, Length Less Shaft 15 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
