Shop MARATHON

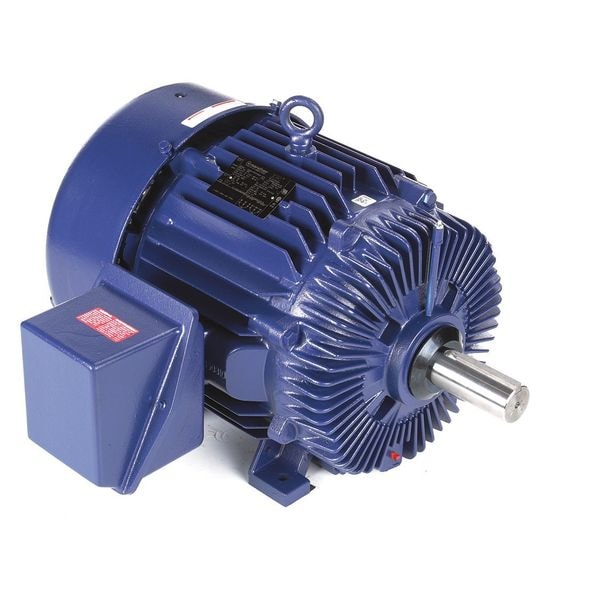

Definite Purpose Motor, Three Phase, 30, 7 1/2 HP, 1,785/888 Nameplate RPM, 460V AC, 324T Frame

  • Mfr # 324TTFS7290

  • Zoro # G9827675

product price:
$
6,207.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
30, 7 1/2
Nameplate RPM
1,785/888
Frame
324T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324TTFS7290
Zoro #
G9827675
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
28 7/8 in
Length Less Shaft
21 3/16 in
Shaft Dia.
2 1/8 in
Shaft Length
5 1/2 in
Body Dia.
18 3/16 in
Frame Size
324T
Shaft Diameter
2 1/8 in
Body Diameter
18.19 in
Wire Rope Length
28 7/8 in
Length
28 7/8 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
30, 7 1/2
Nameplate RPM
1,785/888
Frame
324T
Motor Shaft Rotation
CW/CCW
Full Load Amps
35,11.2 A
Voltage
460V AC
Nominal Efficiency
91 %
Conduit Box Position
F1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Motor Sub Application
Speed Definite Purpose AC Motor
Standards
CE Listed, CSA Certified, UL Recognized
Phase
Three
Warranty
1 yr
Motor Shaft Design
Keyed
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
CC Number
CC003A
Frame Material
Cast Iron
Duty
Continuous
Ambient Temperature
40 Degrees C
Hz
60 Hz
Motor Mounting Type
Rigid Base
RPM Range
1,701-1,800
Finish
Epoxy-Coated
Motor Service Factor
1.15
Ins. Class
F
Motor Thermal Protection
None
Motor Application
Cooling Tower
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Max. Ambient Temp.
40 Degrees C
Weight
668 lb
No. of Speeds
2
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Features
Extended Grease Tubes, Forsheda Seals on Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage
Output Watts
22400 W
Product Type
Cooling Tower Motor
Application
Cooling Tower
Shaft Design
Keyed
Mounting Position
Horizontal/Vertical Shaft Up
Frequency
60 Hz
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Full Load Current @ 60 Hz
35.0/11.2 A

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 30 hp, 7 1/2 hp HP, 1,785/888 RPM Nameplate RPM, 324T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 35.0/11.2 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 2 1/8 in, Shaft Length 5 1/2 in
