  6. Definite Purpose Motor, Three Phase, 25, 6 1/4 HP, 1,775/880 Nameplate RPM, 460V AC, 286T Frame

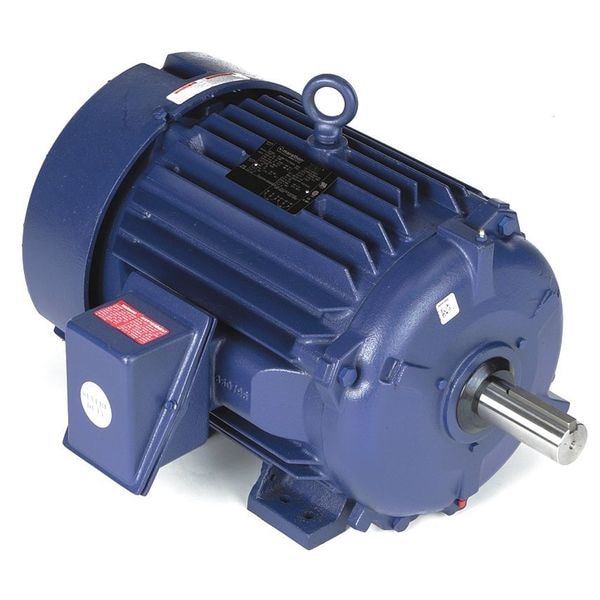

Marathon Definite Purpose Motor, Three Phase, 25, 6 1/4 HP, 1,775/880 Nameplate RPM, 460V AC, 286T Frame 286TTFNA7260 - main

Definite Purpose Motor, Three Phase, 25, 6 1/4 HP, 1,775/880 Nameplate RPM, 460V AC, 286T Frame

  • Mfr # 286TTFNA7260

  • Zoro # G9827684

product price:  $5,139.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
25, 6 1/4
Nameplate RPM
1,775/880
Frame
286T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
286TTFNA7260
Zoro #
G9827684
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
27 11/16 in
Length Less Shaft
21 3/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 13/16 in
Body Dia.
15 1/16 in

Details

Item
Definite Purpose Motor
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
25, 6 1/4
Nameplate RPM
1,775/880
Frame
286T
Motor Shaft Rotation
CW/CCW
Full Load Amps
11, 31 A
Voltage
460V AC
Nominal Efficiency
91.7 %
Conduit Box Position
F1, F2
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Motor Sub Application
Speed Definite Purpose AC Motor
Standards
CE Listed, CSA Certified, UL Recognized
Phase
Three
Motor Shaft Design
Keyed
Ins. Class
F
Motor Thermal Protection
None
Motor Bearings
Ball
Motor Frame Material
Cast Iron
Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Finish
Epoxy
Motor Service Factor
1.15
Ambient Temperature
40 Degrees C
Duty
Continuous
Hz
60 Hz
Motor Efficiency Group
NEMA Premium Efficient
RPM Range
1,701-1,800
Warranty
1 yr
CC Number
CC003A
Motor Application
Cooling Tower
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Usable @ 208V
No
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Weight
468 lb
No. of Speeds
2
Output Watts
18700 W
Usable @ 200V
No
Features
Extended Grease Tubes, Forsheda Seals on Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 25 hp, 6 1/4 hp HP, 1,775/880 RPM Nameplate RPM, 286T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 31.0/11.0 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 7/8 in
