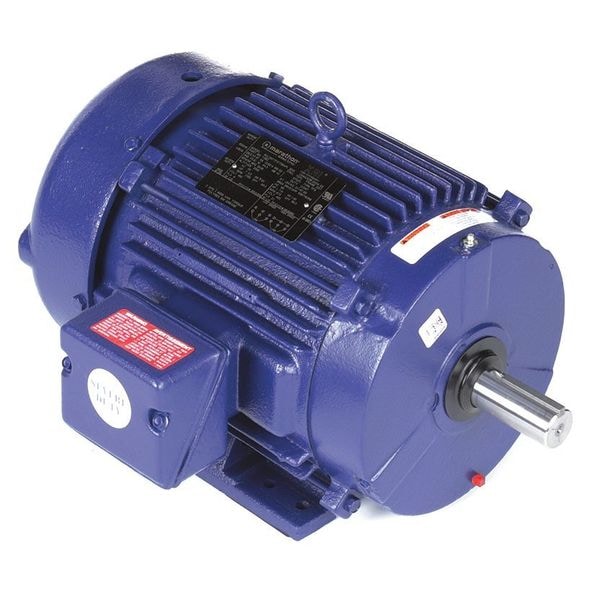

Definite Purpose Motor, Three Phase, 7 1/2, 1 7/8 HP, 1,765/875 Nameplate RPM, 460V AC, 215T Frame

  • Mfr # 215TTFS7290
  • Zoro # G9827711
product price:
$
2,376.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
7 1/2, 1 7/8
Nameplate RPM
1,765/875
Frame
215T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFS7290
Zoro #
G9827711
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
3 5/8 in
Length Less Shaft
16 3/16 in
Shaft Dia.
1 3/8 in
Overall Length
19 3/4 in
Body Dia.
8 1/2 in
Frame Size
215T
Body Diameter
8.5 in
Shaft Diameter
1 3/8 in
Wire Rope Length
19 3/4 in
Length
19 3/4 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
7 1/2, 1 7/8
Nameplate RPM
1,765/875
Frame
215T
Motor Shaft Rotation
CW/CCW
Full Load Amps
9,3.1 A
Voltage
460V AC
Nominal Efficiency
89.5 %
Conduit Box Position
F1
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Sub Application
Speed Definite Purpose AC Motor
Standards
CE Listed, CSA Certified, UL Recognized
Phase
Three
Frame Material
Cast Iron
CC Number
CC003A
Warranty
1 yr
Ambient Temperature
40 Degrees C
Motor Thermal Protection
None
Hz
60 Hz
Duty
Continuous
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Finish
Epoxy-Coated
Motor Application
Cooling Tower
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Efficiency Group
NEMA Premium Efficient
RPM Range
1,701-1,800
Ins. Class
F
Motor Frame Material
Cast Iron
Green Certification or Other Recognition
NEMA Premium(R) Rated
Features
Extended Grease Tubes, Forsheda Seals on Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage
Usable @ 208V
Not Usable at 208V
No. of Speeds
2
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
217 lb
Output Watts
5600 W
Conduit Box Location
Exterior
Bearing Type
Ball
Insulation Class
F
Application
Cooling Tower
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Cooling Tower Motor
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Full Load Current @ 60 Hz
3.1 A, 9.0 A
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal/Vertical Shaft Up

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 1 7/8 hp, 7 1/2 hp HP, 1,765/875 RPM Nameplate RPM, 215T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 3.1 A, 9.0 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 3/8 in, Shaft Length 3 5/8 in
