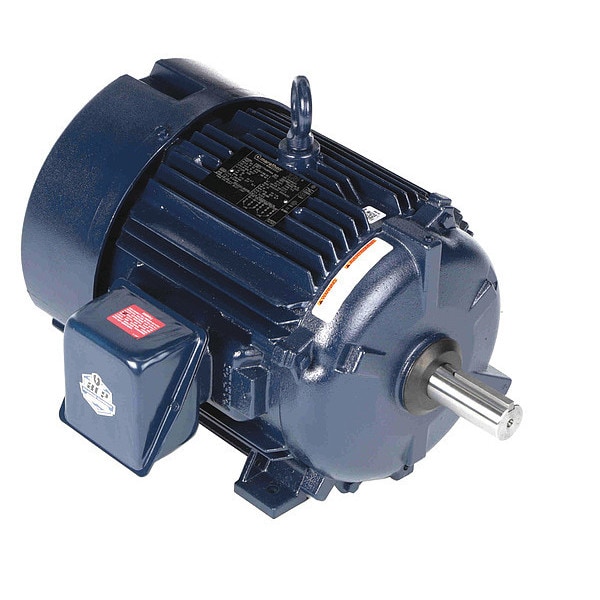

General Purpose Motor, Three Phase, 10 HP, 1765 rpm Nameplate RPM, 230/460V AC, 215T Frame
Mfr # 215TTFCD6070
Zoro # G6538222
product price:Â $1,430.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
10
Nameplate RPM
1765 rpm
Frame
215T
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
215TTFCD6070
Zoro #
G6538222
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
3 1/2 in
Shaft Dia.
1 3/8 in
Manufacturers Warranty Length
1 yr
Overall Length
22 5/8 in
Length Less Shaft
19 1/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1765 rpm, Frame 215T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 26.6/13.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
