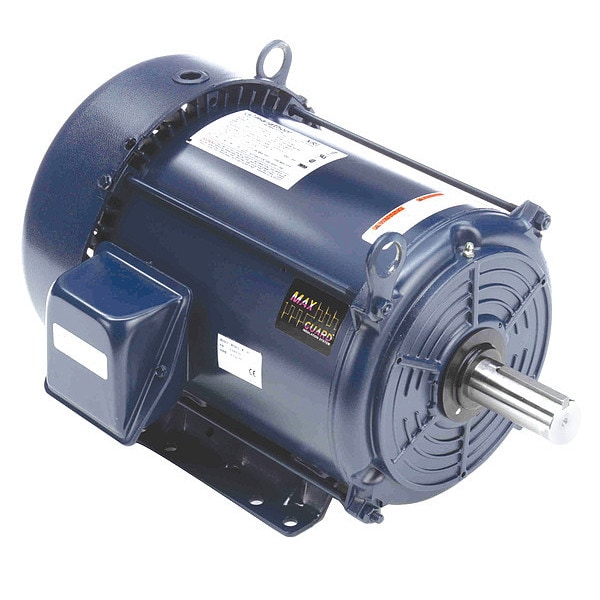

General Purpose Motor, Three Phase, 5 HP, 1170 rpm Nameplate RPM, 230/460V AC, 215T Frame

  • Mfr # 215TTFBD6080
  • Zoro # G6570571
product price:
$
1,205.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
5
Nameplate RPM
1170 rpm
Frame
215T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFBD6080
Zoro #
G6570571
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 3/8 in
Length Less Shaft
16 7/8 in
Shaft Length
3 3/8 in
Overall Length
20 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
215T
Wire Rope Length
20 1/4 in
Length
20 1/4 in

Details

Item
General Purpose Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
5
Nameplate RPM
1170 rpm
Frame
215T
Motor Shaft Rotation
CW/CCW
Full Load Amps
14.0/7.0 A
Voltage
230V AC, 460V AC
Nominal Efficiency
89.5 %
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
Ins. Class
F
Motor Application
General Purpose
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Duty
Continuous
Hz
50/60 Hz
Inverter Rated
Yes
No. of Speeds
1
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
RPM Group
1101-1200
Motor Service Factor
1.15
Motor Frame Material
Steel
Motor Thermal Protection
None
CC Number
CC003A
Motor Mounting Position
Horizontal
RPM Range
1,101-1,200
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
14.0/7.0 A
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
230/460
Usable @ 208V
Not Usable at 208V
RPM @ 50Hz
1170 rpm
Duty Cycle
Continuous
HP @ 50Hz
5 hp
Full Load Current @ 60 Hz
14.0/7.0 A
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Inverter Rating
Inverter Rated
Nameplate RPM @ 50 Hz
1,440/1,445/1,450 RPM
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 50 Hz
1.15
Product Type
General Purpose Motor
Nameplate Horsepower @ 50 Hz
5 hp
Manufacturers Warranty
1 yr
Mounting Position
Horizontal
Insulation Class
F
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
Full Load Current @ 50 Hz
14.0/7.0 A
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1170 rpm, Frame 215T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 14.0/7.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
