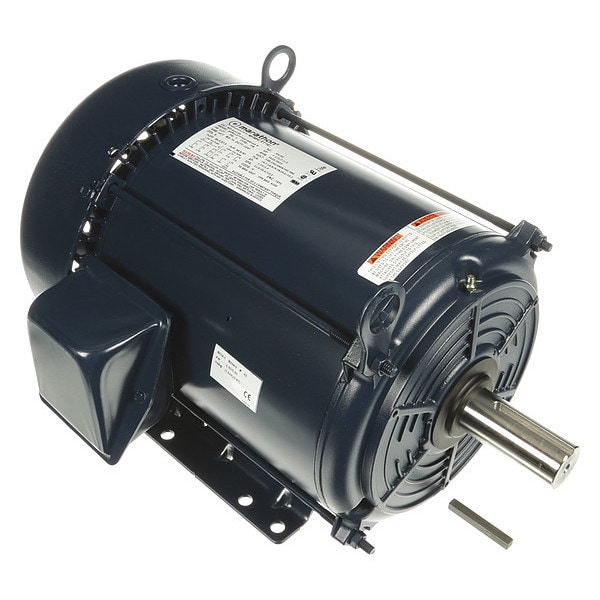

Marathon General Purpose Motor, Three Phase, 7 1/2 HP, 3525 rpm Nameplate RPM, 208-230/460V AC, 213T Frame 213TTFBD6002 - main

General Purpose Motor, Three Phase, 7 1/2 HP, 3525 rpm Nameplate RPM, 208-230/460V AC, 213T Frame

  • Mfr # 213TTFBD6002

  • Zoro # G6579148

product price:  $896.99
/ea
Additional $240.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
7 1/2
Nameplate RPM
3525 rpm
Frame
213T
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
213TTFBD6002
Zoro #
G6579148
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
18 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1 3/8 in
Length Less Shaft
15 3/8 in
Shaft Length
3 3/8 in
Shaft Diameter
1 3/8 in
Frame Size
213T

Details

Item
General Purpose Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
7 1/2
Nameplate RPM
3525 rpm
Frame
213T
Motor Shaft Rotation
CW/CCW
Full Load Amps
19.7-18.6/9.3 A
Voltage
208-230/460V AC
Nominal Efficiency
89.5 %
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
Motor Thermal Protection
None
Motor Service Factor
1.15
Motor Mounting Position
Horizontal
RPM Range
3001-3600
Duty
Continuous
Inverter Rated
Yes
Motor Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
RPM Group
3001-3600
Hz
60/50 Hz
Motor Bearings
Ball
CC Number
CC003A
Motor Shaft Design
Keyed
Ins. Class
F
Motor Mounting Type
Rigid Base
Motor Application
General Purpose
No. of Speeds
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Service Factor @ 50Hz
1.15
HP @ 50Hz
7 1/2 hp
Duty Cycle
Continuous
RPM @ 50Hz
3525 rpm
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
19.7-18.6/9.3 A
Voltage @ 50Hz
208-230/460
Full Load Current @ 60 Hz
19.7-18.6/9.3 A
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
7 1/2 hp
Nameplate Voltage @ 50 Hz
190/380V AC
Insulation Class
F
Mounting Position
Horizontal
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Nameplate RPM @ 50 Hz
1,755/1,440 RPM
Frequency
60/50 Hz
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Number of Speeds
1
Product Type
General Purpose Motor
Frame Material
Steel
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 50 Hz
1.15
Full Load Current @ 50 Hz
19.7-18.6/9.3 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3525 rpm, Frame 213T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 19.7-18.6/9.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600
