Shop MARATHON

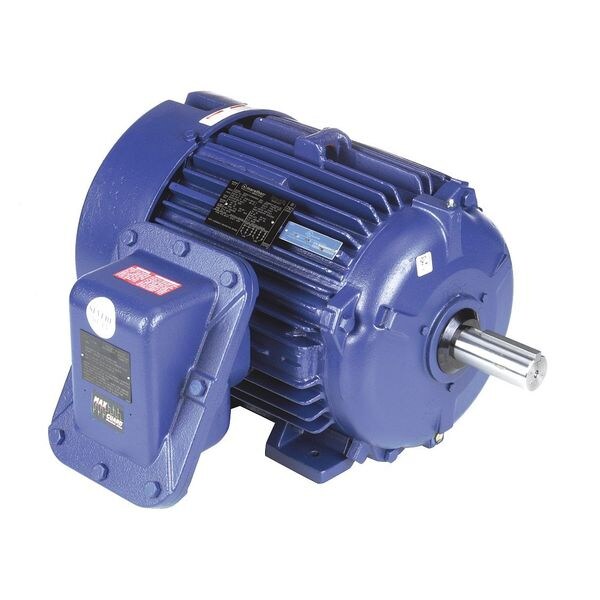

Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T3B

  • Mfr # 284TTGCD6533
  • Zoro # G3520221
product price:
$
4,026.99
/ea
Additional $290.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
25 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284TTGCD6533
Zoro #
G3520221
UPC #
-
Country of Origin
Mexico

Dimensions

Lead Length
8 in
Shaft Dia.
1 7/8 in
Overall Length
26 3/16 in
Shaft Length
4 11/16 in
Length Less Shaft
21 3/8 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 7/8 in
Wire Rope Length
26 3/16 in
Frame Size
284T
Length
26 3/16 in

Details

Motor Design
Three-Phase
Phase
Three
HP
25 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
284T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Application
Hazardous Location
Temp. Code
T3B
Full Load Amps
62.0/31.0 A
Ins. Class
F
Nominal Efficiency
93.6 %
Item
Hazardous Location Motor
Motor Bearings
Ball
Standards
CSA Certified, UL Listed
Nameplate RPM
1,772 RPM
Motor Frame Material
Cast Iron
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Design
Keyed
Duty
Continuous
NEMA Design
B
Frame Material
Cast Iron
Motor Efficiency Group
NEMA Premium Efficient
Includes
(11) Leads in the Conduit Box
Hz
60 Hz
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
Hazardous Location Division
Division I
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Weight
26 lb
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Bearing Type
Ball
Mounting Position
Horizontal
Application
Hazardous Location
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Temperature Code
T3B
Full Load Current @ 60 Hz
62.0/31.0 A
Product Type
Hazardous Location Motor
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Shaft Design
Keyed
NEMA Design Class
B

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,772 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 62.0/31.0 A, 284T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
