Shop MARATHON

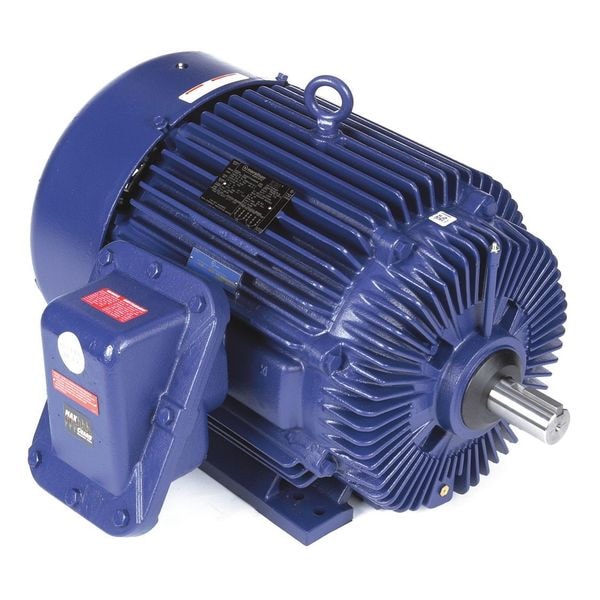

Hazardous Loc Mtr, 3 Ph, TEFC, 50 HP, T3B

  • Mfr # 326TSTGS6501

  • Zoro # G3530746

product price:
$
7,350.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
50 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
326TSTGS6501
Zoro #
G3530746
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 7/8 in
Overall Length
30 3/8 in
Length Less Shaft
26 3/8 in
Lead Length
6 in
Shaft Length
4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 7/8 in
Frame Size
326TS
Wire Rope Length
30 3/8 in
Length
30 3/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
50 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
326TS
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
NEMA Design
B
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
94.5 %
Motor Frame Material
Cast Iron
Motor Shaft Design
Keyed
Motor Efficiency Group
NEMA Premium Efficient
Includes
(11) Leads in the Conduit Box
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Application
Hazardous Location
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Green Certification or Other Recognition
NEMA Premium(R) Rated
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Item
Hazardous Location Motor
Duty
Continuous
Nameplate RPM
3,555 RPM
Ins. Class
F
Frame Material
Cast Iron
Temp. Code
T3B
Full Load Amps
118.0/59.0 A
CC Number
CC003A
Motor Service Factor
1.15
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Hazardous Location Division
Division I
Weight
81 lb
Motor Mounting Position
Horizontal
Hazardous Location Group
Group C, Group D, Group F, Group G
Number of Speeds
1
Bearing Type
Ball
Product Type
Hazardous Location Motor
Application
Hazardous Location
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Temperature Code
T3B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
3 yr
Frequency
60 Hz
Full Load Current @ 60 Hz
118.0/59.0 A

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 50 hp HP, Nameplate RPM 3,555 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 118.0/59.0 A, 326TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
