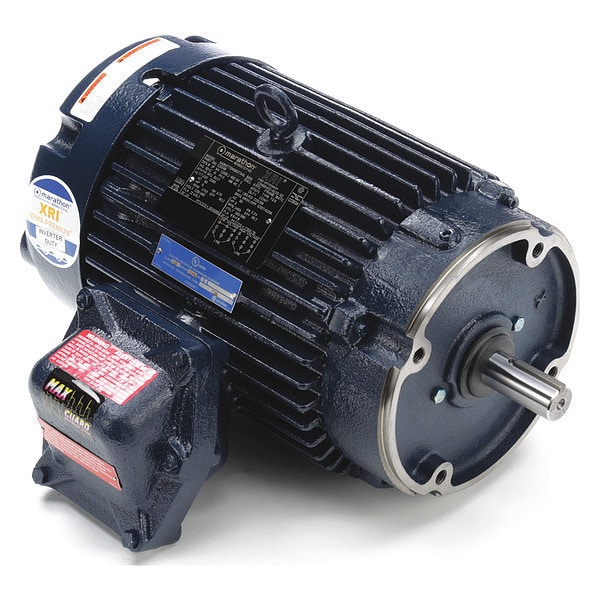

Hazardous Location Motor, 5 HP, 12.4/6.2A

  • Mfr # 184TTGCD16027
  • Zoro # G7408969
product price:
$
1,387.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTGCD16027
Zoro #
G7408969
UPC #
-
Country of Origin
Mexico

Dimensions

Lead Length
6 in
Shaft Dia.
1 1/8 in
Overall Length
18 5/8 in
Shaft Length
2 5/8 in
Length Less Shaft
16 in
Shaft Diameter
1 1/8 in
Frame Size
184TC
Wire Rope Length
18 5/8 in
Length
18 5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
184TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Standards
UL Certified for Canada, UL Listed
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Ins. Class
B
Item
Hazardous Location Motor
Duty
Continuous
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
NEMA Design
B
Temp. Code
T3B
Motor Bearings
Ball
Motor Frame Material
Cast Iron
CC Number
CC003A
Frame Material
Cast Iron
Motor Service Factor
1
Nameplate RPM
1,755 RPM
Motor Shaft Design
Keyed
Full Load Amps
12.4/6.2 A
Motor Application
Hazardous Location
Nominal Efficiency
90.2 %
Max. Ambient Temp.
40 Degrees C
Includes
Explosion Proof Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Weight
29 lb
Hazardous Location Division
Division I
Duty Cycle
Continuous
Hazardous Location Group
Group D, Group F, Group G
Product Type
Hazardous Location Motor
Bearing Type
Ball
NEMA Design Class
B
Application
Hazardous Location
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Temperature Code
T3B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Full Load Current @ 60 Hz
12.4/6.2 A
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.4/6.2 A, 184TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
