  11. Severe Duty Mtr, 3-Ph, TENV, 3 HP

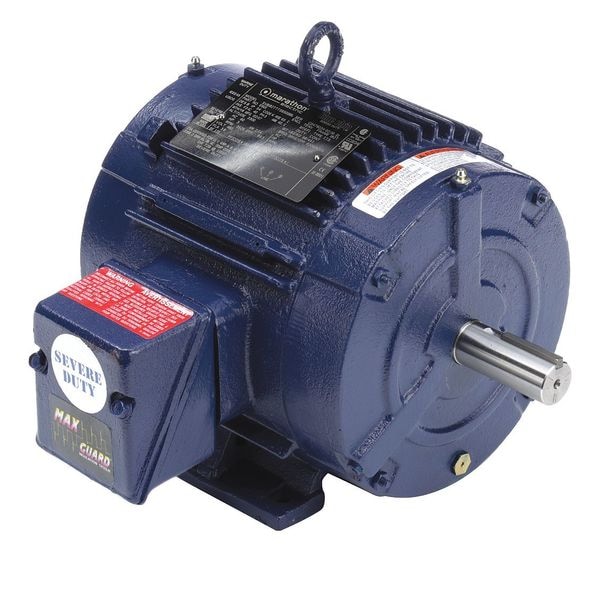

Marathon Severe Duty Mtr, 3-Ph, TENV, 3 HP 182TTTCD6501 - main

Severe Duty Mtr, 3-Ph, TENV, 3 HP

  • Mfr # 182TTTCD6501

  • Zoro # G5519762

product price: $928.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3
RPM Range
3001-3600
Voltage
460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
182TTTCD6501
Zoro #
G5519762
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
12 13/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Length Less Shaft
10 1/16 in
Lead Length
3" to 8"

Details

Motor Design
Three-Phase
Phase
Three
HP
3
RPM Range
3001-3600
Voltage
460V AC
Frame
182T
Hazardous Location Class
1 C,D / 2 F,G
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
Rigid Base
Nameplate RPM
3525 rpm
Full Load Amps
3.5 A
Item
Severe Duty Motor
Hz
60 Hz
Motor Bearings
Ball
Includes
Max Guard Insulation
CC Number
CC003A
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
Motor Frame Material
Cast Iron
Duty
Continuous
Motor Shaft Design
Keyed
Ins. Class
F
Nominal Efficiency
89.5 %
Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Standards
CSA (LR2025), UL (E49747)
RPM Group
3001-3600
No. of Speeds
1
Motor Service Factor
1.15
Motor Application
General Purpose
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Temp. Code
T2B
Weight
103 lb
Inverter Rated
Yes
Motor Mounting Position
Horizontal
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous
Inverter Rating
10:1

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 3 HP, Nameplate RPM 3525 rpm, Frame 182T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA (LR2025), UL (E49747)
