Shop MARATHON

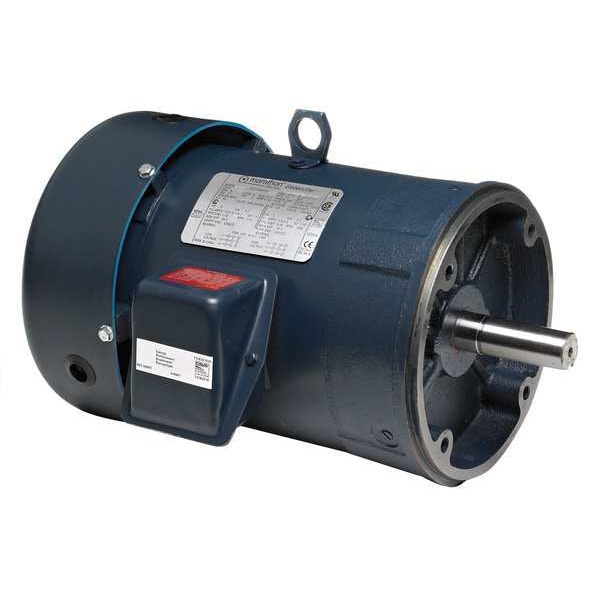

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM

  • Mfr # 215TTFBD6004
  • Zoro # G9816082
product price:
$
1,155.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
3518 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
23.6/11.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
215TTFBD6004
Zoro #
G9816082
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
10
Nameplate RPM
3518 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
23.6/11.8 A
Frame
215TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
92.4 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Weight
155 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Insulation Class
F
Bearing Type
Ball
Manufacturers Warranty
1 yr
NEMA Design Class
B
Number of Speeds
1
Full Load Current @ 60 Hz
23.6/11.8 A
Nameplate RPM @ 50 Hz
1,440/1,445/1,450 RPM
Application
General Purpose
Frequency
60 Hz
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3518 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
