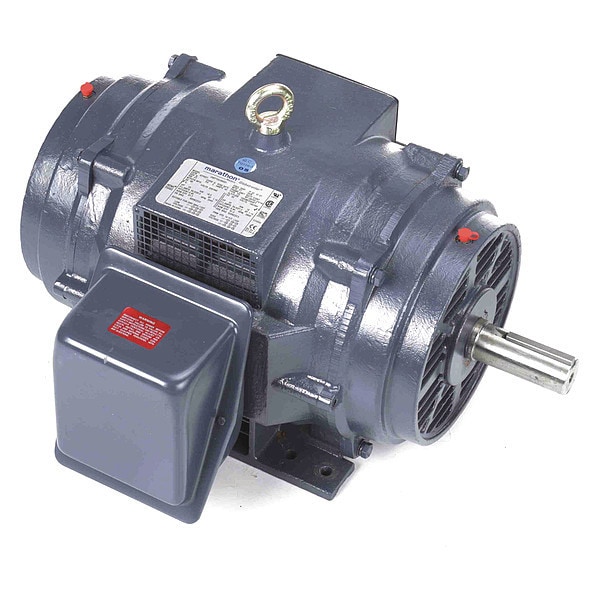

Three-Phase General Purpose Motor, 25 HP, 256T Frame, 230/460V AC Voltage, 3556 rpm Nameplate RPM
- Mfr # 256TTDBD6001
- Zoro # G4778413
product price:Â
$
1,757.99
/ea
Additional $115.00 delivery surcharge applies per item.
Key Features
HP
25
Nameplate RPM
3556 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
59.5/29.7 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 256TTDBD6001
- Zoro #
- G4778413
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 20 1/4 in
- Overall Length
- 24 1/4 in
- Shaft Dia.
- 1 5/8 in
- Shaft Length
- 4 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Diameter
- 1 5/8 in
- Frame Size
- 256T
- Wire Rope Length
- 24 1/4 in
- Length
- 24 1/4 in
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3556 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 59.5/29.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
