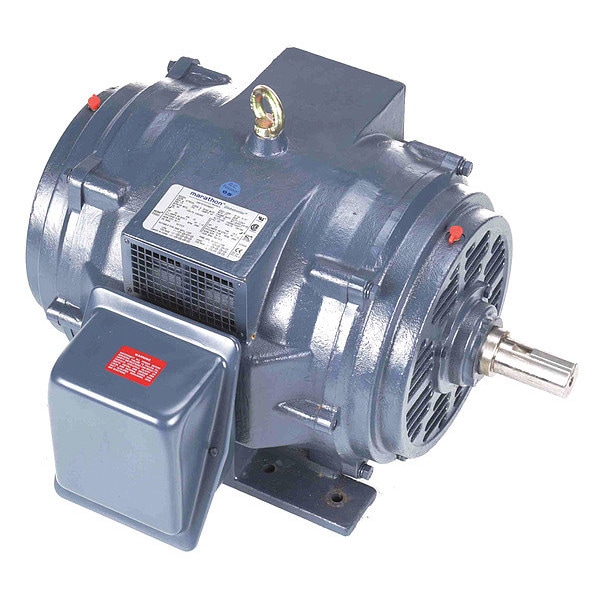

Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 230/460V AC Voltage, 3562 rpm Nameplate RPM

  • Mfr # 284TSTDBD6001
  • Zoro # G4812801
product price:
$
2,328.99
/ea
Additional $325.00 delivery surcharge applies per item.
See details

Key Features

HP
30
Nameplate RPM
3562 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
71.5/35.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284TSTDBD6001
Zoro #
G4812801
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
21 1/16 in
Overall Length
24 5/16 in
Shaft Dia.
1 5/8 in
Shaft Length
3 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
284TS
Shaft Diameter
1 5/8 in
Wire Rope Length
24 5/16 in
Length
24 5/16 in

Details

Item
General Purpose Motor
HP
30
Nameplate RPM
3562 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
71.5/35.5 A
Frame
284TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
376 lb
NEMA Design
B
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Mounting Position
Horizontal
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
190/380V AC
Frequency
60 Hz
NEMA Design Class
B
Full Load Current @ 60 Hz
71.5/35.5 A
Insulation Class
F
Bearing Type
Ball
Manufacturers Warranty
1 yr
Application
General Purpose
Nameplate RPM @ 50 Hz
1,770 RPM

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 3562 rpm, Frame 284TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.5/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
