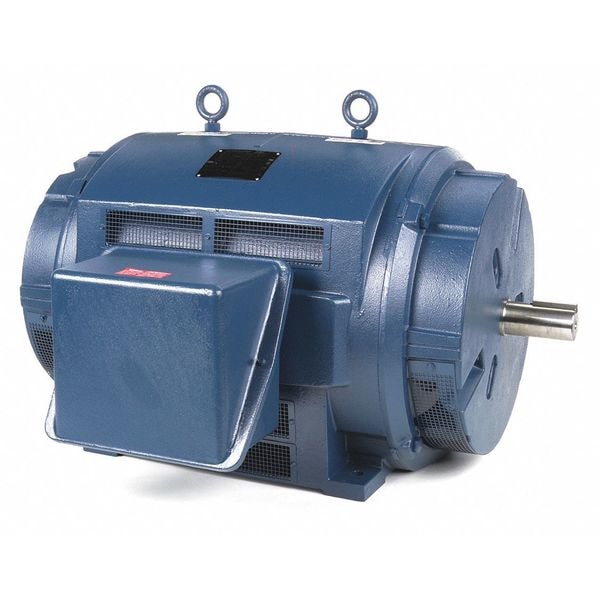

Marathon Three-Phase General Purpose Motor, 350 HP, 447TS Frame, 460V AC Voltage, 3570 rpm Nameplate RPM 447TSTDCD6003 - main

Three-Phase General Purpose Motor, 350 HP, 447TS Frame, 460V AC Voltage, 3570 rpm Nameplate RPM

  • Mfr # 447TSTDCD6003

  • Zoro # G9875914

product price:  $22,983.90
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
350
Nameplate RPM
3570 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
385.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
447TSTDCD6003
Zoro #
G9875914
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
34 1/2 in
Overall Length
39 1/2 in
Shaft Dia.
2 3/8 in
Shaft Length
4 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
2 3/8 in
Frame Size
447TS

Details

Item
General Purpose Motor
HP
350
Nameplate RPM
3570 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
385.0 A
Frame
447TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
2,073 lb
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Product Type
General Purpose Motor
Insulation Class
F
Frequency
60 Hz
Inverter Rating
Inverter Rated
Application
General Purpose
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Number of Speeds
1
Nameplate RPM @ 50 Hz
2,840/2,860 RPM
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
385.0 A

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 350 HP, Nameplate RPM 3570 rpm, Frame 447TS, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 385.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CE, CSA (LR2025), UL (E49747)
