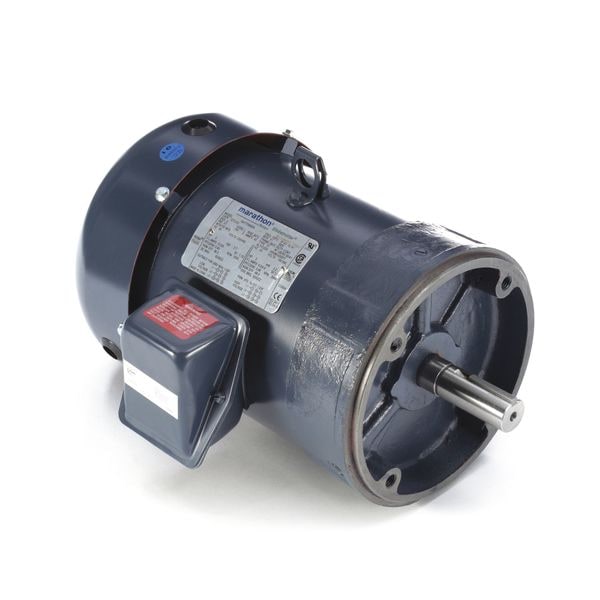

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM
- Mfr # 184TTFBD6004
- Zoro # G5489154
product price:Â
$
739.99
/ea
Free Shipping & Returns
Key Features
HP
5
Nameplate RPM
3525 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
12.4/6.2 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 184TTFBD6004
- Zoro #
- G5489154
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 14 1/8 in
- Overall Length
- 16 7/8 in
- Shaft Dia.
- 1 1/8 in
- Shaft Length
- 2 3/4 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Diameter
- 1 1/8 in
- Frame Size
- 184TC
- Wire Rope Length
- 16 7/8 in
- Length
- 16 7/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3525 rpm, Frame 184TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CSA, UL
