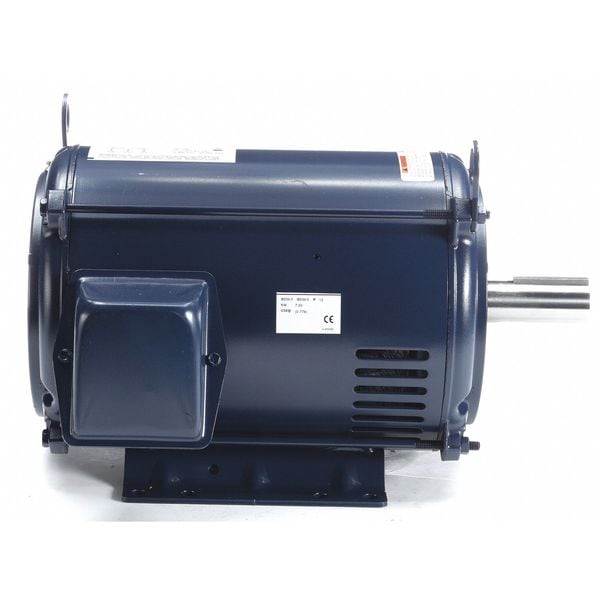

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

  • Mfr # 213TTDWD16060

  • Zoro # G7592153

product price:
$
1,105.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
1,765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
20.0/10.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TTDWD16060
Zoro #
G7592153
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 in
Overall Length
17 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/2 in
Manufacturers Warranty Length
1 yr
Frame Size
213T
Shaft Diameter
1 3/8 in
Wire Rope Length
17 1/2 in
Length
17 1/2 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1,765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
20.0/10.0 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CE Listed, CSA (LR2025), UL (E6312)
CC Number
CC003A
Inverter Rated
No
Motor Thermal Protection
Auto
Duty Cycle
Continuous
Bearing Protection
AEGIS(R) Rings
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Frame Material
Steel
Nameplate RPM @ 50 Hz
1,760 RPM
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Frequency
60/50 Hz
Full Load Current @ 60 Hz
20.0/10.0 A
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Number of Speeds
1
Inverter Rating
Not Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
190/380V AC
Manufacturers Warranty
1 yr
Mounting Position
Horizontal

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,765, Frame 213T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 20.0/10.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,701-1,800
