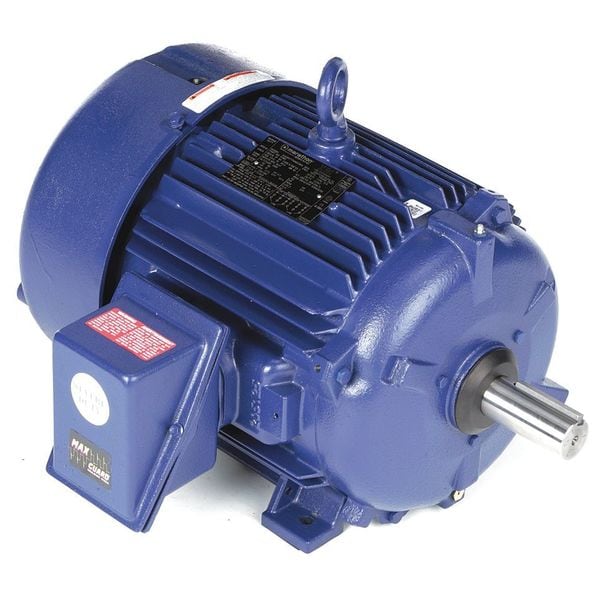

Three-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1772 rpm Nameplate RPM
Mfr # 254TTFCD6529
Zoro # G9943832
product price:Â $1,885.99
/ea
Additional $240.00 delivery surcharge applies per item.
Key Features
HP
15
Nameplate RPM
1772 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
37.5/18.8 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
254TTFCD6529
Zoro #
G9943832
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
20 1/8 in
Overall Length
24 1/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Lead Length
9" to 8"
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1772 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 37.5/18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
