Shop MARATHON

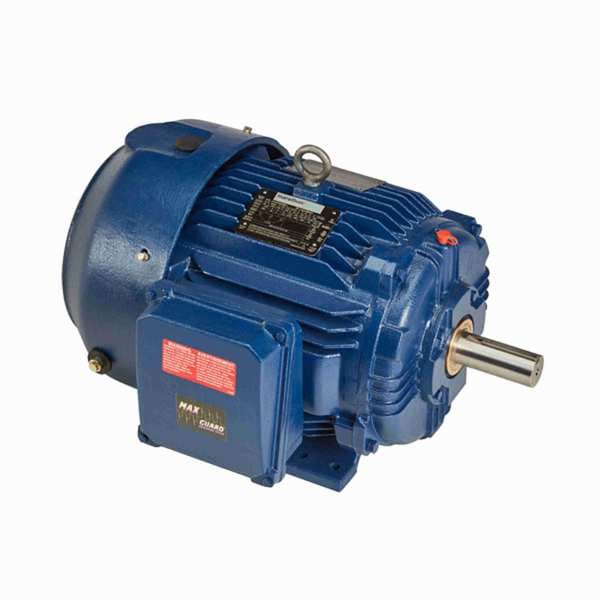

Three-Phase Severe Duty Motor, 3 hp HP, 182T Frame, 460V AC Voltage, 1,770 RPM Nameplate RPM

  • Mfr # 182THTCD9026

  • Zoro # G913037411

product price:
$
1,025.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Nameplate RPM
1,770 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182THTCD9026
Zoro #
G913037411
UPC #
722856192431
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/16 in
Overall Length
12 13/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Wire Rope Length
12 13/16 in
Shaft Diameter
1 1/8 in
Frame Size
182T
Length
12 13/16 in

Details

Item
Severe Duty Motor
HP
3 hp
Nameplate RPM
1,770 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
Severe Duty
Motor Shaft Rotation
CWSE
Voltage Compatibility
460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
IEEE 841
Usable @ 208V
Not Usable at 208V
Weight
109 lb
Duty Cycle
Continuous
NEMA Design
B
Bearing Protection
Shaft Slingers
Inverter Rated
Inverter Rated
Usable @ 200V
Not Usable at 200V
Full Load Current @ 60 Hz
3.9 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Severe Duty Motor
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Bearing Protection Type
Shaft Slingers
Bearing Type
Ball
Frequency
60 Hz
Insulation Class
H
Number of Speeds
1
Frame Material
Cast Iron
Application
Severe Duty
Shaft Design
Keyed
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Efficiency Rating
Premium Efficiency (IE3)
Mounting Position
Horizontal

Description

Severe Duty Motor,3 Phase,460V
