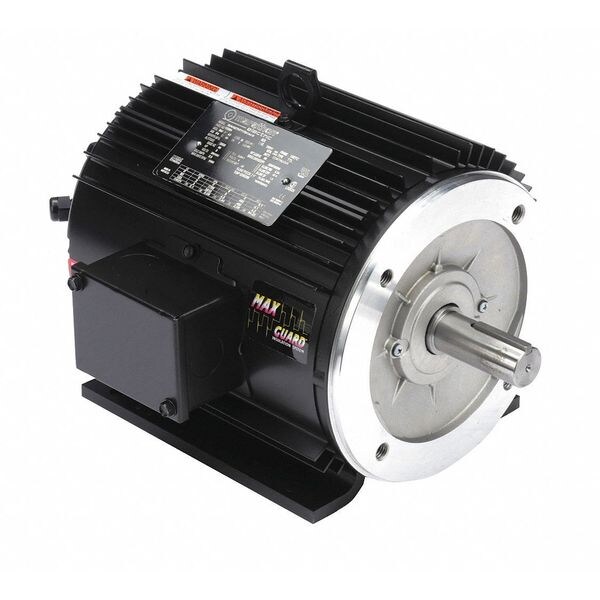

Vector Motor, 3 HP, 9.0 ft.-lb., 60 Hz, Ball
Mfr # 182THTY17041
Zoro # G2030476
product price: $2,695.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
3
Torque
9 ft-lb
Nameplate RPM
1,755
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
182THTY17041
Zoro #
G2030476
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
16 3/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 82.0/4.1 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
