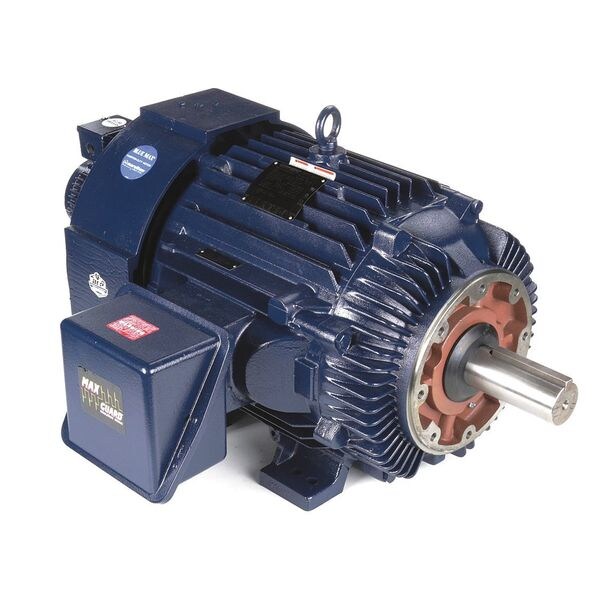

Vector Motor, 3-Phase, 75HP, 230/460V

  • Mfr # 405THFS8378
  • Zoro # G9922893
product price:
$
30,930.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
75
Nameplate RPM
1,185
Speed Range
2,000:1
Max. Speed
1,200 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405THFS8378
Zoro #
G9922893
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
7 in
Shaft Dia.
2 7/8 in
Overall Length
49 3/4 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Encoder Shaft Length
1 3/4 in
Encoder Shaft Diameter
1 in
Frame Size
405TC
Shaft Diameter
2 7/8 in
Wire Rope Length
49 3/4 in
Length
49 3/4 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
75
Nameplate RPM
1,185
Speed Range
2,000:1
Max. Speed
1,200 RPM
Frame
405TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Encoder Acceptable
Yes
Nominal Efficiency
94.1 %
Ins. Class
H
Encoder Shaft
1 in x 1-3/4 in
Phase
Three
Hz
60 Hz
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Full Load Amps
180.0/90.0 A
Duty
Continuous
Max. Operating Frequency
90 Hz
Base
Rigid
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Motor Service Factor
1
Motor Mounting Type
Rigid Base
Finish
Enamel
Motor Mounting Position
Horizontal
Motor Frame Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Application
Crane
Ambient Temperature
40 Degrees C
Standards
CE, CSA, UL Recognized
Insulation Feature
Class F
RPM Range
1,101-1,200
Motor Efficiency Group
Energy Efficient
Warranty
3 yr
Motor Shaft Design
Keyed
Frame Material
Cast Iron
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
No. of Speeds
1
Weight
1,387 lb
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Maximum Speed
1,200 RPM
Inverter Rated
Inverter Rated
Full Load Current @ 60 Hz
180.0/90.0 A
Frame Finish
Enamel-Coated
Motor Enclosure Type
Totally Enclosed Blower Cooled
Bearing Type
Ball
Efficiency Rating
NEMA Energy Efficient
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
90 Hz
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Manufacturers Warranty
3 yr
Product Type
Vector Motor
NEMA Design Class
B
Insulation Class
H
Shaft Design
Keyed

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 75 HP, Nameplate RPM 1,185, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 180.0/90.0 A, 405TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
