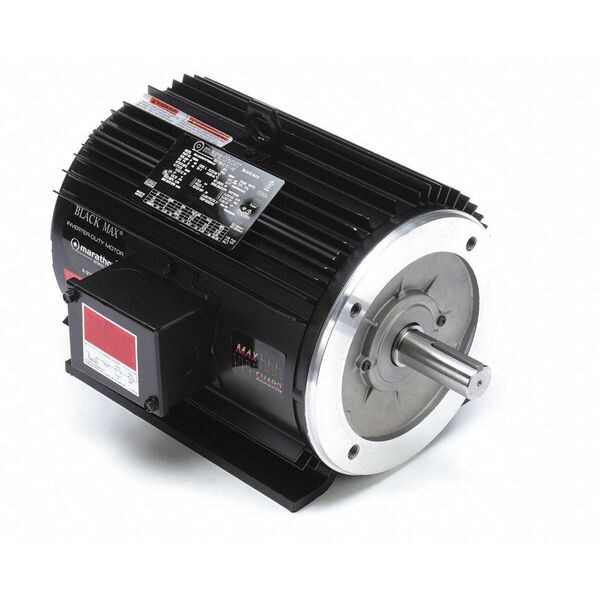

Vector Motor, 5 HP, 14.9 ft.-lb., 60 Hz
Mfr # 184THTY7736
Zoro # G2030485
product price: $1,982.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
5
Torque
14.9 ft-lb
Nameplate RPM
1,760
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
184THTY7736
Zoro #
G2030485
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/8 in
Overall Length
17 11/16 in
Shaft Length
2 5/8 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 575V AC, Full Load Amps 5.4 A, 184TC Frame, Torque 14.9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
