Shop MARATHON

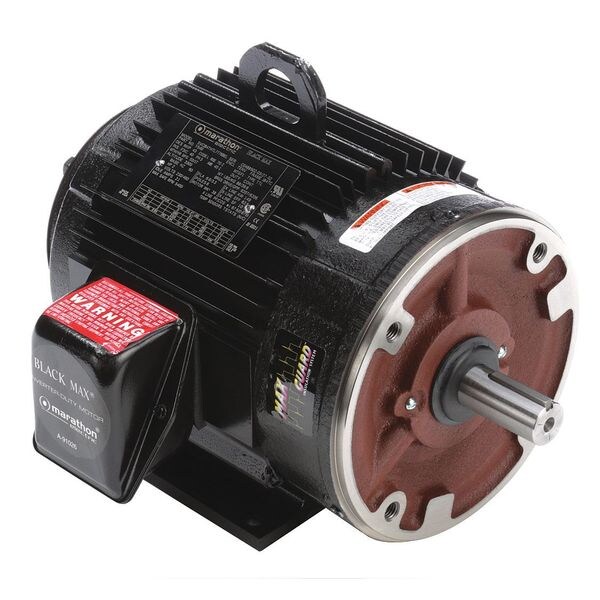

Vector Motor, 9.0 lb-ft, 2 HP, 230/460 V

  • Mfr # 184THTL7776

  • Zoro # G1505393

product price:
$
1,991.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2
Torque
9 ft-lb
Nameplate RPM
1,160
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184THTL7776
Zoro #
G1505393
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Overall Length
16 15/16 in
Length Less Shaft
14 5/16 in
Manufacturers Warranty Length
3 Years
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Encoder Shaft Diameter
5/8 in
Encoder Shaft Length
1 3/4 in
Frame Size
184TC
Shaft Diameter
1 1/8 in
Wire Rope Length
16 15/16 in
Length
16 15/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
2
Torque
9 ft-lb
Nameplate RPM
1,160
Speed Range
1,000:1
Max. Speed
5,400 RPM
Frame
184TC
Voltage
230/460V AC
Motor Thermal Protection
None
NEMA Design
A
Motor Shaft Design
Keyed
Warranty
3 yr
Motor Mounting Type
Rigid Base
Duty
Continuous
Encoder Acceptable
Yes
Insulation Feature
Patented MAX GUARD
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Motor Service Factor
1
Frame Material
Aluminum
Full Load Amps
6.6/3.3 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Base
Rigid
Motor Frame Material
Aluminum
Encoder Shaft
5/8 x 1-3/4 in
Ambient Temperature
40 Degrees C
Finish
Black
Motor Efficiency Group
Standard Efficient
Motor Application
Crane
Motor Shaft Rotation
CW/CCW
Standards
CE, UL Recognized
Phase
Three
Nominal Efficiency
82.5 %
RPM Range
1,101-1,200
Ins. Class
F
Max. Operating Frequency
120 Hz
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
88 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Conduit Box Position
F1, F2
Nameplate Service Factor @ 60 Hz
1
Product Type
Vector Motor
Efficiency Rating
NEMA Standard Efficiency
Inverter Rated
Inverter Rated
Maximum Operating Frequency
120 Hz
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frequency
60 Hz
Mounting Position
Horizontal
Full Load Current @ 60 Hz
6.6/3.3 A
Maximum Speed
5,400 RPM
Shaft Design
Keyed
Bearing Type
Ball
Insulation Class
F
NEMA Design Class
A
Ambient Temperature - Maximum
40 Degrees C

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.6/3.3 A, 184TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
