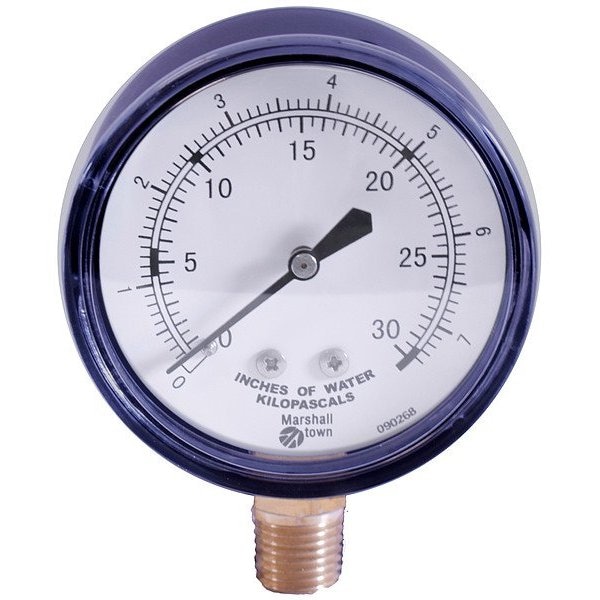

Marsh Pressure Gauge, 1/4 in NPT, Bottom Location G25759 - main

Pressure Gauge, 1/4 in NPT, Bottom Location

  • Mfr # G25759

  • Zoro # G615194016

product price:  $78.15
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Series
G
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
G25759
Zoro #
G615194016
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Case Diameter
2.63 in
Case Depth
1.5 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Series
G
Lens Material
Acrylic
Primary Scale Units
in H2O
Liquid-Filled Case
No
Panel-Mountable
No
Standards
ASME B40.100
Case Color
Black
Socket Material
Phosphor Bronze
Case Material
Steel
Dial Color
White
Pointer Color
Black
Process Connection Gender
Male
Sensor Material
Copper Alloy
Pressure Range Type
Vacuum
Accuracy Grade
ASME B40.100, ASME Grade A
Bezel Mounting Type
Twist Lock
Compatible with Series
Diaphragm Gauges
Operating Temperature - Maximum
160 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 kPa
Non-Sparking
Yes
Scale Type
Dual
Secondary Scale Vacuum Measurement - Minimum
0 kPa
Case Finish
Painted
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Color
Black
Secondary Scale Units
in H2O
Includes Vent Plug
No
Case Liquid
None
Primary Scale Vacuum Measurement - Maximum
160 in wc
Includes Calibration Certificate
No
Pressure Gauge Type
Low Pressure Gauge
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Maximum
160 in wc
Pointer Material
Aluminum
Field Fillable
No

Description

Pressure Gauge, Accuracy +/-3-1-3 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Low Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Socket Material Phosphor Bronze, Sensor Material Copper Alloy, Accuracy Grade ASME B40.100, ASME Grade A, Series G
