Shop MEGGER

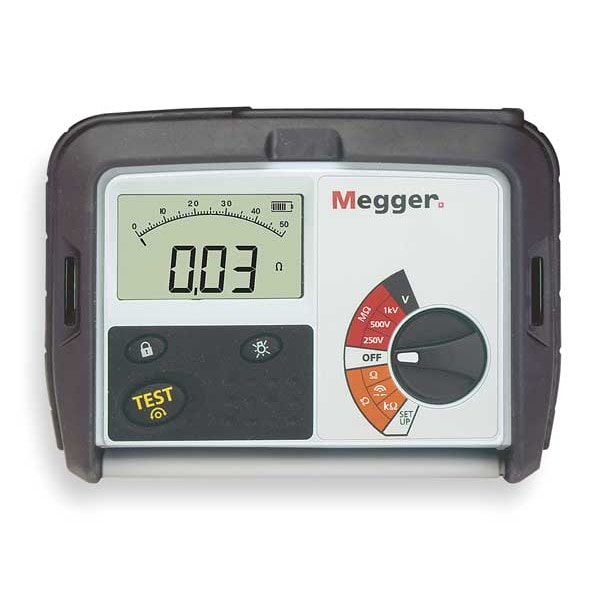

Battery Operated Megohmmeter, 1000VDC

  • Mfr # MIT330

  • Zoro # G1378072

product price:  $1,505.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Crocodile Clips, SP4F Switch Probe, Test Lead Set
Insulation Resistance Range
10 kiloohm to 999 megaohm
Features
Intelligent Safety System for Protection., Live Circuit Warning, Self Contained Protective Cover, Tough Rubber Armoured Case
Output Test Voltage
250/500/1000V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT330
Zoro #
G1378072
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
3 yr
Tool Length
8 in
Manufacturer Warranty Length
3 yr
Tool Height
3.2 in
Battery Size
AA
Tool Width
5.7 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
Crocodile Clips, SP4F Switch Probe, Test Lead Set
Insulation Resistance Range
10 kiloohm to 999 megaohm
Features
Intelligent Safety System for Protection., Live Circuit Warning, Self Contained Protective Cover, Tough Rubber Armoured Case
Output Test Voltage
250/500/1000V DC
Auto Power Off
Yes
Display
Digital LCD
Auto Ranging
Yes
Safety Rating
CAT III 600V, CAT IV 300V
Accuracy
+/-3% +/-2 Digits
Live Circuit Detection
0 to 600V AC/V DC
Interface
USB
Calibration Certificate
Included
Leakage Current Range
205 mA +10 mA to 5 mA
CAT Safety Rating
CAT III 600V
Communication Protocol
USB
Parameters Measured
Continuity, Insulation Resistance
Display Type
Digital
Test Voltage
250V DC
Bluetooth Compatible
No
Display Screen Type
LCD
Backlit Digital Display
Yes
Greater Than 30V Warning
No
Minimum Insulation Resistance
10 ohm
Minimum Operating Temperature
14 Degrees F
Alert Type
Digital Display, Audible
Test Current
1 mA
Includes Software
Yes
USB Data Download Included
Yes
Maximum Operating Temperature
140 Degrees F
Capacitance Auto Discharge
Yes
Maximum Insulation Resistance
999 megaohm
Remote Test Probe Included
Yes
Waterproof
Yes
Timed Ramp Voltage Test
No
Battery Chemistry
Alkaline
Number of Batteries Required
8
Pass/Fail Selection Limits
Yes
Live Circuit Voltage
Greater Than25V AC/DC
IP Rating
IP54
Insulation Limit Alarm
Yes
Maximum AC Voltage Measured
600 V
PI/DAR Testing
No
Standards
BS 7671, EN 61557, ES 59009, IEC 364, NEN3140, NFC15-100, VDE 0413 parts 1 and 4, HD 384
Includes Batteries
Yes
Resistance Accuracy
+/-5% +/-2 Digits up to 100 kiloohm
Dustproof
Yes
Testing Functions
Continuity, Insulation Resistance
Operating Voltage
600V AC/DC
Insulation Resistance Resolution
0.01 to 999 megaohm
Live Circuit Voltage Measurement - Maximum
600 V AC/DC
Installation Tester Socket Region
EU, US
Live Circuit Voltage Measurement - Minimum
5 V
Data Output Type
USB
Maximum DC Voltage Measured
600 V
Calibration Certificate Included
Traceable without Data
Minimum DC Voltage Measured
25 V
Instrument Style
Handheld
Minimum AC Voltage Measured
0 V
Number of Records Stored
1,000
Power Source - TS Only
Battery

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Included, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning No, Includes Crocodile Clips, SP4F Switch Probe, Test Lead Set, Insulation Limit Alarm Yes, Maximum Insulation Resistance 999 megaohm, Minimum Insulation Resistance 10 ohm, PI/DAR Testing No, Parameters Measured Continuity, Insulation Resistance
