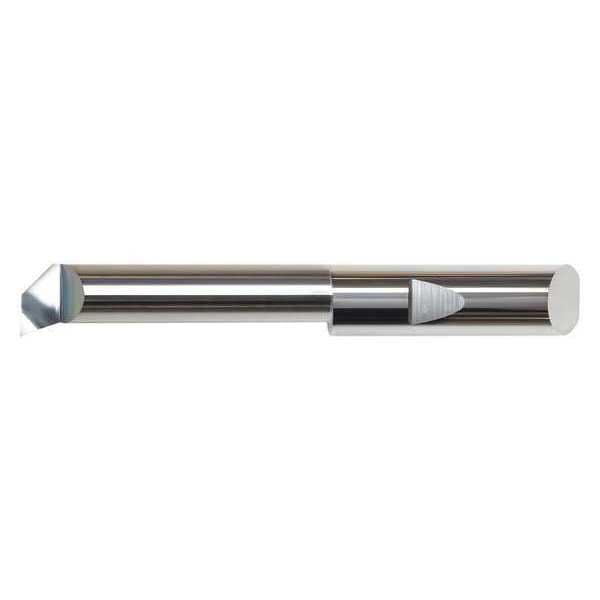

Boring Bar, 3 in L, Carbide

Name: Boring Bar, 3 in L, Carbide
Brand: Micro 100
SKU: G8238027
Price: 74.29 USD
Availability: InStock

74.29

/ea

Overall Length

3 in

Shank Material

Carbide

Cutting Direction

Right Hand

Application

For Boring Top Rake

Shank Dia.

1/4 in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: QBT-2001500X
Zoro #: G8238027
UPC #: 728709155301
Country of Origin: United States
Item: Boring Bar
Shank Material: Carbide
Cutting Direction: Right Hand
Application: For Boring Top Rake
Material: C2 Micrograin Carbide
Angle: .030"
Finish: AlTiN Coated
Projection: 0.0300 in
Center to Cutting Tip: 0.0750 in
Side Cutting Edge Angle: 20 Degrees
Features: Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Cutting Application: Boring, Finishing
Boring Bar Type: Top Rake Chipbreaker
Series: QBT
Measurement System: Fractional Inch
Finish - Machining: AlTiN
Compatible with Product Type: Micro-Quik Tool Holder
Overhang: 1.8530 in
Offset Point: 0.0750 in
Offset: 0.085"
Material - Machining: Carbide

Overall Length: 3 in
Shank Dia.: 1/4 in
Bore Depth: 1.50"
Bore Dia.: .200"
Radius: 0.0060 in
Max. Bore Depth: 1-1/2 in
Min. Bore Dia.: 0.2000 in
Neck Dia.: 0.1700"
Corner Radius: 0.006"
Split Length: 0.160"
Groove Width: 0.0870"
Wire Rope Length: 3 in
Length: 3 in
Fits Chest Size: Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling

Boring Bar, Top Rake Chipbreaker, AlTiN, 0.0750 in, Micro-Quik Tool Holder
