Shop MILLER ELECTRIC

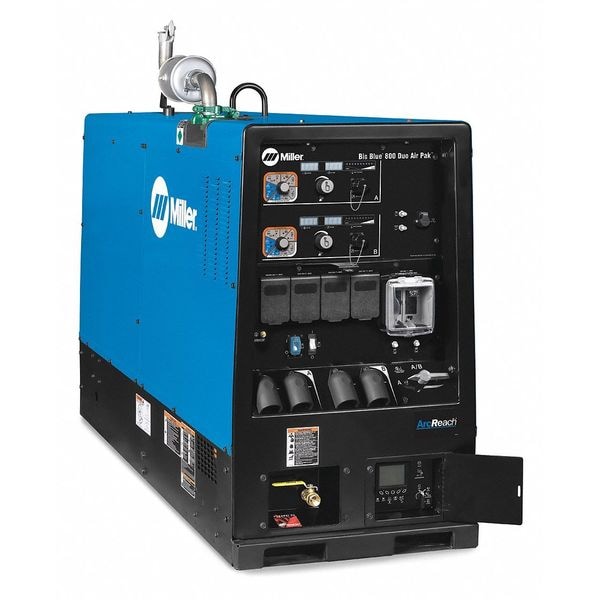

Engine-Driven Welder, Big Blue 800 Duo Pro Series, Electric Start, 65.7 hp, Diesel, 27,000 W Peak

  • Mfr # 907752001

  • Zoro # G1614188

product price:
$
93,366.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Big Blue 800 Duo Pro
Start Type
Electric
Rated Output CC/DC
800 A @ 38 V, 100%
Amperage Range
20 to 800
Continuous Auxiliary Power
12,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907752001
Zoro #
G1614188
UPC #
715959657365
Country of Origin
United States

Dimensions

Width
28 1/2 in
Depth
69 1/2 in
Height
46 in
Overall Depth
69.5 in
Overall Height
46 in
Overall Width
28.5 in

Details

Item
Engine-Driven Welder
Series
Big Blue 800 Duo Pro
Start Type
Electric
Rated Output CC/DC
800 A @ 38 V, 100%
Amperage Range
20 to 800
Continuous Auxiliary Power
12,000 W
Peak Auxiliary Power
27,000 W
Engine Brand
Deutz
HP
65.7 hp
Fuel Type
Diesel
Phase
Three
Includes
Air Cleaner Restriction Indicators, ArcReach Remote Control Technology, FA-1D Lockable Flame Arrestor Fuel Cap, Spark Arrestor, Vandalism Lockout Kit
Standards
CSA Certified
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Construction, Fabrication, Maintenance/Repair
Air Compressor Delivery
40 CFM @ 100 psi (Idle), 60 CFM @ 100 psi (Weld)
Stick Welding Output @ Duty Cycle
400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
Horsepower
66 hp
TIG Welding Output @ Duty Cycle
400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
Sound Level
71.3 dB @ 23 ft, 78.9 dB @ 23 ft
Stick Welding Minimum Output Current
20 A (Dual), 40 A (Combined)
Fuel Tank Capacity
25 gal
Oil Capacity
8 1/2 qt
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 240V L6-30R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
TIG Welding Minimum Output Current
20 A (Dual), 40 A (Combined)
Welding Mode
CC/CV
Maximum Pressure - Air Compressor
100 psig
Engine Model
Deutz TD2.9 L4
Weight
2,095 lb
Generator Fuel Type
Diesel
Polarity
DC
Open Circuit Voltage
85 V DC
Circuit Breaker
Yes
For Material Type
Stainless Steel, Steel
TIG Welding Maximum Output Current
800 A
Stick Welding Maximum Output Current
800 A
Coolant Tank Capacity
16 qt
Enhanced Process
Pulsed MIG (GMAW-P), RMD
MIG Welding Output @ Duty Cycle
400 A @ 34 V, 100% (Separate), 750 A @ 40 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
MIG Welding Maximum Output Current
800 A
Model
907752001
Rated Output @ Duty Cycle (TIG)
400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
Amperage TIG - Maximum
800 A
Welding Power Source Type
CC/CV
Amperage TIG - Minimum
20 A
Amperage MIG - Maximum
800 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
20 A
Air Compressor Maximum Pressure
100 psig
Amperage Stick - Maximum
800 A
Rated Output @ Duty Cycle (MIG)
400 A @ 34 V, 100% (Separate), 750 A @ 40 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
Rated Output @ Duty Cycle (Stick)
400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)

Description

Engine-Driven Welder, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 800 A, MIG Welding Output @ Duty Cycle 400 A @ 34 V, 100 Percent (Separate), 750 A @ 40 V, 100 Percent (Combined), 800 A @ 38 V, 100 Percent (Combined), Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 800 A, Stick Welding Minimum Output Current 20 A (Dual), 40 A (Combined)
