  9. Diesel Engine-Driven Welder, Trailblazer(R) Series, Glow Plug Start, 12,000 W Peak
No Product Image Available

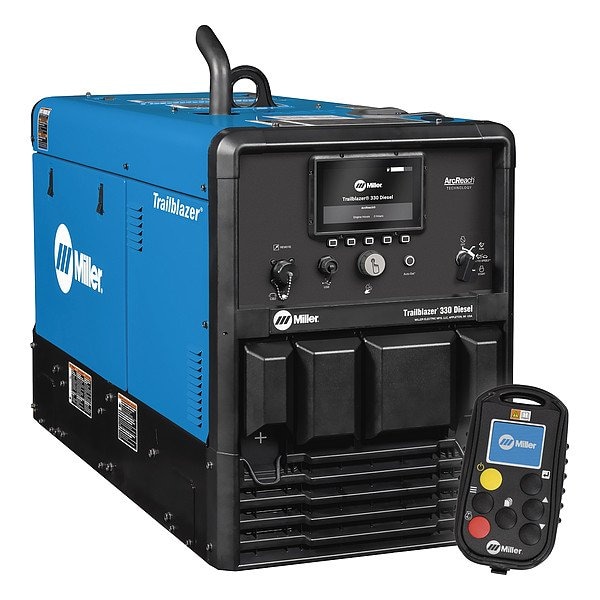

Diesel Engine-Driven Welder, Trailblazer(R) Series, Glow Plug Start, 12,000 W Peak

  • Mfr # 907849002

  • Zoro # G510901641

product price: $27,580.99
/ea
Additional $310.00 delivery surcharge applies per item.
See details

Key Features

Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907849002
Zoro #
G510901641
UPC #
715959707992
Country of Origin
United States

Dimensions

Overall Depth
45.72 in
Overall Width
20.6 in
Overall Height
27.02 in

Details

Item
Diesel Engine-Driven Welder
Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
Application
Aluminum Welding, Fabrication, Field Welding, Industrial Welding, Mobile Fabrication and MRO, Structural Welding
Includes
10-pin direct connect spoolgunExcel PowerWireless Interface Control (WIC)
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase
Single-Phase
Standards
cCSAus
Oil Capacity
3 7/8 qt
Horsepower
24.8 hp
Stick Welding Output @ Duty Cycle
330 A @ 31 V, 100%
TIG Arc Start Feature
Lift Arc TIG
Sound Level
74.7 dB @ (Idle), 80.2 dB @ (Max Weld)
TIG Welding Output @ Duty Cycle
330 A @ 31 V, 100%
Fuel Tank Capacity
11 gal
Circuit Breaker
Yes
TIG Welding Minimum Output Current
20 A
Open Circuit Voltage
107 V DC
Engine Model
T4F
Welding Mode
CC/CV
MIG Welding Maximum Output Current
330 A
MIG Welding Output @ Duty Cycle
330 A @ 30.5 V, 100%
Generator Fuel Type
Diesel
Stick Welding Minimum Output Current
20 A
For Material Type
Aluminum, Stainless Steel, Steel
Weight
611 lb
TIG Welding Maximum Output Current
330 A
Stick Welding Maximum Output Current
330 A
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG (GMAW), Pulsed TIG (GTAW-P), Stick (SMAW), TIG DC (GTAW-DC)
Engine Displacement
54.1 cu in
Coolant Tank Capacity
0.25 gal
Color
Black, Blue
Generator Outlets
14-50R 120/240V AC KVA (1) Nema 6-50R (1), 5-20R 120V AC Duplex (2)
Remote Connection Type
10-Pin (Miller), 14-Pin (Lincoln)
Polarity
DC
MIG Welding Minimum Output Current
20 A
Model
Trailblazer(R) 330 Diesel

Description

Diesel Engine-Driven Welder, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30.5 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Glow Plug, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 31 V, 100 Percent

Restrictions

Hazardous material
