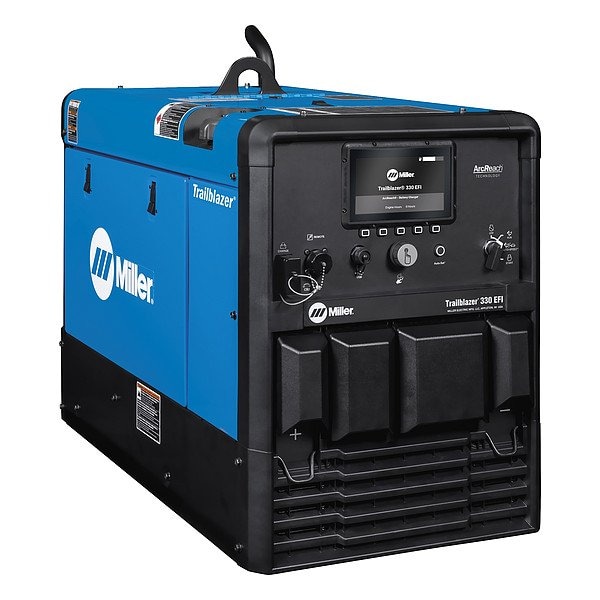

Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak

  • Mfr # 907832003

  • Zoro # G410607407

product price:  $14,480.99
/ea
Additional $260.00 delivery surcharge applies per item.
See details

Key Features

Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
907832003
Zoro #
G410607407
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
26.5 in
Overall Depth
37.06 in
Overall Width
20.13 in
For Steel Thickness - Maximum
46,089 in
For Aluminum Thickness - Minimum
20 ga
For Stainless Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Maximum
46,089 in
For Stainless Steel Thickness - Maximum
46,089 in
For Steel Thickness - Minimum
20 ga

Details

Item
Engine-Driven Welder Generator
Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
Includes
10-Pin (Direct Connect for Spoolgun), 14-pin receptacle, Advanced Auto-Speed, Advanced Weld Controls (Dynamic DIG, Pulse TIG, Inductance), ArcReach, Auto-Set Technology, Battery Charge Crank assist, Electronic Fuel Injection (EFI), Excel Power, Full Process Selection, LCD Display, USB Port
Phase
Single
Standards
cCSAus
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Aluminum Welding, Fabrication, Mobile Fabrication & MRO, Structural Welding
Model
Trailblazer 330
MIG Welding Output @ Duty Cycle
330 A @ 30 V, 100%
Fuel Tank Capacity
11 gal
Open Circuit Voltage
107 V DC
Stick Welding Minimum Output Current
20 A
Horsepower
23 hp
MIG Welding Maximum Output Current
330 A
Stick Welding Maximum Output Current
330 A
Polarity
DC
Oil Capacity
1 1/2 qt
Generator Fuel Type
Gasoline
For Material Type
Aluminum, Stainless Steel, Steel
Engine Displacement
44.2 cu in
Stick Welding Output @ Duty Cycle
330 A @ 30 V, 100%
Circuit Breaker
Yes
Welding Mode
CC/CV
TIG Welding Output @ Duty Cycle
330 A @ 30 V, 100%
Weight
400 lb
Engine Model
Kohler ECH730
MIG Welding Minimum Output Current
20 A
TIG Welding Minimum Output Current
20 A
Color
Black, Blue
TIG Welding Maximum Output Current
330 A
Sound Level
151 A load: 65 dB @ 23 ft (Weld), 330 A load:73.5 dB @ 23 ft (Weld), 73.5 dB @ 23 ft (Auxiliary power), Excel power: 65 dB @ 23 ft (Auxiliary power)
Generator Outlets
GFCI 120 V (2) Excel Power outlet (2,400W @ idle), NEMA 14-50R 120/240V AC, NEMA 6-50R 240V AC
Enhanced Process
Pulsed TIG (GTAW-P)
Remote Connection Type
14-Pin (Miller)
Amperage MIG - Maximum
330 A
Rated Output @ Duty Cycle (TIG)
330 A @ 30 V, 100%
Rated Output @ Duty Cycle (MIG)
330 A @ 30 V, 100%
Amperage Stick - Maximum
330 A
Rated Output @ Duty Cycle (Stick)
330 A @ 30 V, 100%
Amperage TIG - Maximum
330 A
Amperage MIG - Minimum
20 A
Welding Power Source Type
CC/CV
Amperage Stick - Minimum
20 A
Amperage TIG - Minimum
20 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)

Description

Engine-Driven Welder Generator, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 30 V, 100 Percent
