Shop MILLER ELECTRIC

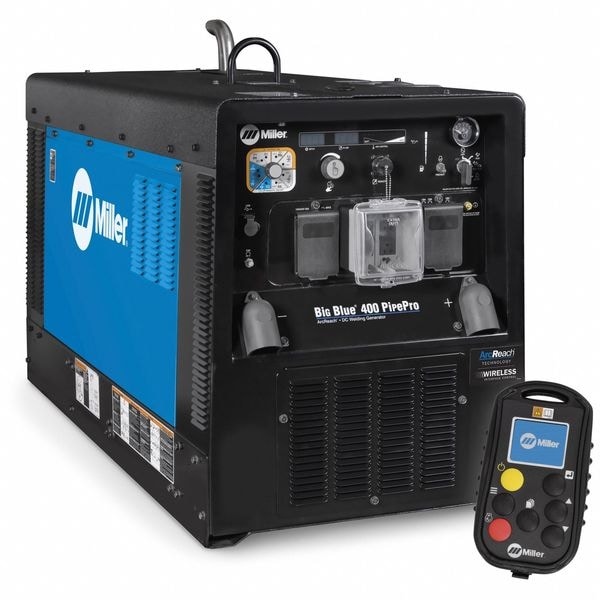

Engine-Driven Welder, Big Blue 400 PipePro Series, Electric Start, 12,000 W Peak

  • Mfr # 907805001

  • Zoro # G406170434

product price:
$
37,884.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Big Blue 400 PipePro
Start Type
Electric
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
12,000 W
Engine Brand
Mitsubishi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
907805001
Zoro #
G406170434
UPC #
715959685078
Country of Origin
United States
Item
Engine-Driven Welder
Series
Big Blue 400 PipePro
Start Type
Electric
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
12,000 W
Engine Brand
Mitsubishi
Stick Welding Maximum Output Current
400 A
For Material Type
Metal, Stainless Steel
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Welding Minimum Output Current
20 A (Single-Phase)
Sound Level
68.7 dB @ 93 Lwa (Idle) /72.1 dB @ 97 Lwa (Weld)
Generator Fuel Type
Diesel
Fuel Tank Capacity
11.5 gal
Polarity
DC
MIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
TIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), DC TIG, Flux Cored (FCAW), MIG (GMAW), RMD, Stick (SMAW)
MIG Welding Maximum Output Current
400 A
Oil Capacity
5 3/4 qt
Includes
(1) Wireless Interface Control Remote
Application
Cross-Country Pipeline, Pipe Fabrication/Construction, Work/Service Trucks
Color
Blue
Phase
Single
TIG Welding Maximum Output Current
400 A (Single-Phase)
Welding Mode
CC/CV
Model
907805001
Stick Welding Minimum Output Current
20 A
Circuit Breaker
Yes
MIG Welding Minimum Output Current
20 A
Weight
993 lb
Stick Welding Output @ Duty Cycle
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
Engine Model
Mitsubishi S4L2
Coolant Tank Capacity
10 qt
Horsepower
24.7 hp
Open Circuit Voltage
85 V DC
Standards
CSA Certified
TIG Arc Start Feature
Lift Arc Start
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Remote Connection Type
14-Pin (Miller)
Welding Power Source Type
CC/CV
Amperage MIG - Maximum
400 A
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
Rated Output @ Duty Cycle (Stick)
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
Rated Output @ Duty Cycle (TIG)
300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
Amperage Stick - Minimum
20 A
Amperage Stick - Maximum
400 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
400 A
Amperage MIG - Minimum
20 A

Description

Engine-Driven Welder, Color Blue, For Material Type Metal, Stainless Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 400 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 300 A @ 32 V DC, 350 A @ 27 V DC, 400 A @ 24 V DC
