Shop MILLER ELECTRIC

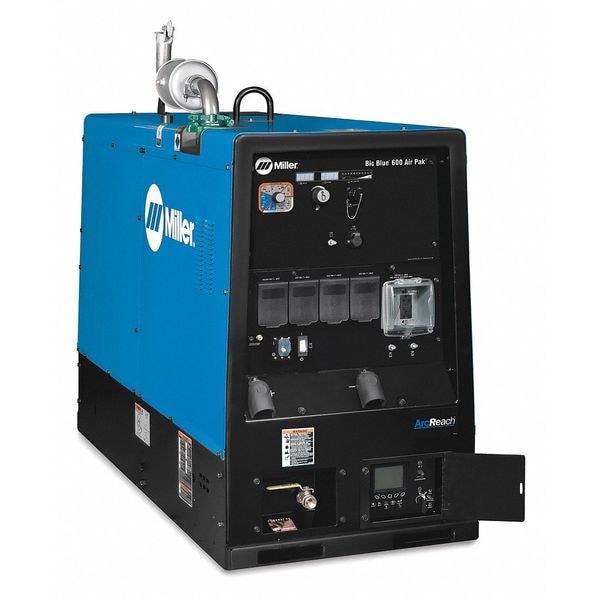

Engine-Driven Welder, Big Blue 600 Air Pak Series, Electric Start, 65.7 hp, Diesel, 27,000 W Peak

  • Mfr # 907750001

  • Zoro # G1614133

product price:  $88,830.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Series
Big Blue 600 Air Pak
Start Type
Electric
Rated Output CC/DC
500A @ 100%, 550A @ 60%, 600A @ 40%
Amperage Range
20 to 600
Continuous Auxiliary Power
20,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907750001
Zoro #
G1614133
UPC #
715959657334
Country of Origin
United States

Dimensions

Width
28 1/2 in
Height
46 in
Depth
69 1/2 in
Overall Depth
69.5 in
Overall Width
28.5 in
Overall Height
46 in

Details

Item
Engine-Driven Welder
Series
Big Blue 600 Air Pak
Start Type
Electric
Rated Output CC/DC
500A @ 100%, 550A @ 60%, 600A @ 40%
Amperage Range
20 to 600
Continuous Auxiliary Power
20,000 W
Peak Auxiliary Power
27,000 W
Engine Brand
Deutz
HP
65.7 hp
Fuel Type
Diesel
Includes
Air Cleaner Restriction Indicators, ArcReach Remote Control Technology, FA-1D Lockable Flame Arrestor Fuel Cap, Spark Arrestor
Phase
Three
Application
Construction, Infrastructure, Maintenance/Repair
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA Certified
Air Compressor Delivery
40 CFM @ 100 psi (Idle), 60 CFM @ 100 psi (Weld)
Stick Welding Maximum Output Current
600 A
Engine Model
Deutz TD2.9 L4
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Horsepower
66 hp
Weight
2,040 lb
MIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 120V L6-20R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
Welding Mode
CC/CV
For Material Type
Stainless Steel, Steel
MIG Welding Maximum Output Current
600 A
Coolant Tank Capacity
9 qt
Stick Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Stick Welding Minimum Output Current
20 A
Maximum Pressure - Air Compressor
100 psig
Sound Level
71.3 dB (Idle), 78.9 dB (Weld)
Circuit Breaker
Yes
TIG Welding Minimum Output Current
20 A
TIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Generator Fuel Type
Diesel
Polarity
DC
Open Circuit Voltage
92 V DC
Fuel Tank Capacity
25 gal
Oil Capacity
8 1/2 qt
TIG Welding Maximum Output Current
600 A
Model
907750001
Amperage MIG - Maximum
600 A
Rated Output @ Duty Cycle (TIG)
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Rated Output @ Duty Cycle (Stick)
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Rated Output @ Duty Cycle (MIG)
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Amperage Stick - Maximum
600 A
Amperage Stick - Minimum
20 A
Amperage TIG - Minimum
20 A
Air Compressor Maximum Pressure
100 psig
Welding Power Source Type
CC/CV
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
600 A

Description

Engine-Driven Welder, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 600 A, MIG Welding Output @ Duty Cycle 500 A @ 40 V, 100 Percent, 575 A @ 43 V, 100 Percent, 600 A @ 44 V, 60 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 600 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 500 A @ 40 V, 100 Percent, 575 A @ 43 V, 100 Percent, 600 A @ 44 V, 60 Percent
