Shop MILLER ELECTRIC

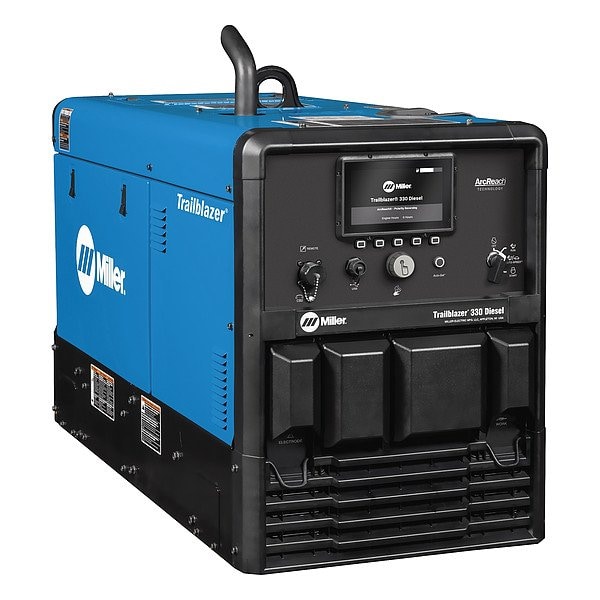

Diesel Engine-Driven Welder, Trailblazer(R) Series, Glow Plug Start, 12,000 W Peak

  • Mfr # 907849004

  • Zoro # G210901736

product price:
$
30,121.99
/ea
Additional $310.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907849004
Zoro #
G210901736
UPC #
715959708012
Country of Origin
United States

Dimensions

Overall Height
27.02 in
Overall Depth
45.72 in
Overall Width
20.6 in
For Stainless Steel Thickness - Maximum
46,024 in
For Steel Thickness - Minimum
18 ga
For Aluminum Thickness - Maximum
46,024 in
For Stainless Steel Thickness - Minimum
22 ga
For Steel Thickness - Maximum
46,024 in
For Aluminum Thickness - Minimum
18 ga

Details

Item
Diesel Engine-Driven Welder
Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
Standards
cCSAus
Phase
Single
Application
Aluminum Welding, Fabrication, Field Welding, Industrial Welding, Mobile Fabrication and MRO, Structural Welding
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Includes
10-pin direct connect spoolgunExcel PowerPolarity Reversing
Open Circuit Voltage
107 V DC
Welding Mode
CC/CV
TIG Arc Start Feature
Lift Arc TIG
Fuel Tank Capacity
11 gal
TIG Welding Minimum Output Current
20 A
Weight
611 lb
TIG Welding Maximum Output Current
330 A
Generator Fuel Type
Diesel
Horsepower
24.8 hp
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG (GMAW), Pulsed TIG (GTAW-P), Stick (SMAW), TIG DC (GTAW-DC)
Stick Welding Output @ Duty Cycle
330 A @ 31 V, 100%
Stick Welding Minimum Output Current
20 A
Stick Welding Maximum Output Current
330 A
For Material Type
Aluminum, Stainless Steel, Steel
Oil Capacity
3 7/8 qt
MIG Welding Maximum Output Current
330 A
Sound Level
74.7 dB @ (Idle), 80.2 dB @ (Max Weld)
MIG Welding Output @ Duty Cycle
330 A @ 30.5 V, 100%
TIG Welding Output @ Duty Cycle
330 A @ 31 V, 100%
Circuit Breaker
Yes
Engine Model
T4F
Model
Trailblazer(R) 330 Diesel
MIG Welding Minimum Output Current
20 A
Coolant Tank Capacity
0.25 gal
Generator Outlets
14-50R 120/240V AC KVA (1) Nema 6-50R (1), 5-20R 120V AC Duplex (2)
Polarity
DC
Engine Displacement
54.11 cu in
Color
Black, Blue
Remote Connection Type
10-Pin (Miller), 14-Pin (Lincoln)
Rated Output @ Duty Cycle (Stick)
330 A @ 31V, 100%
Welding Power Source Type
CC/CV
Amperage TIG - Minimum
20 A
Amperage TIG - Maximum
330 A
Amperage MIG - Maximum
330 A
Amperage MIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
330 A @ 30.5 V, 100%
Amperage Stick - Minimum
20 A
Process
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
330 A @ 31 V, 100%
Amperage Stick - Maximum
330 A

Description

Diesel Engine-Driven Welder, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30.5 V, 100 Percent, Phase Single, Polarity DC, Start Type Glow Plug, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 31 V, 100 Percent

Restrictions

Hazardous material
