  5. MIG Welder, Millermatic 255, Single-Phase, 208V AC, 220/230/240V AC, 20 to 350A DC, 60 %

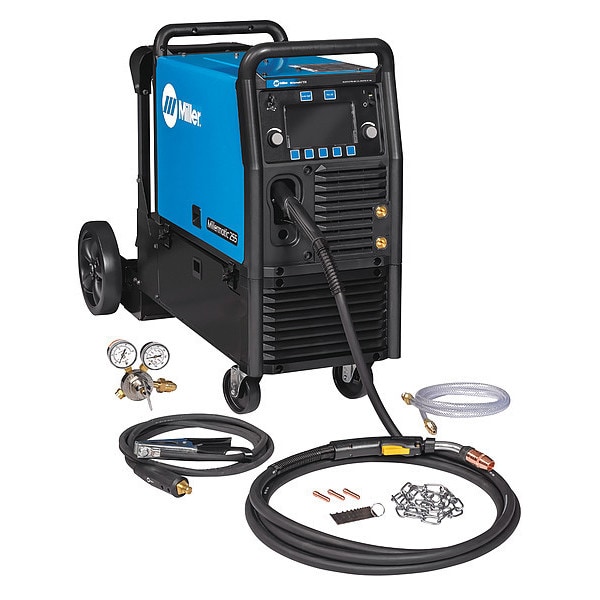

Miller Electric MIG Welder, Millermatic 255, Single-Phase, 208V AC, 220/230/240V AC, 20 to 350A DC, 60 % 951766 - main

MIG Welder, Millermatic 255, Single-Phase, 208V AC, 220/230/240V AC, 20 to 350A DC, 60 %

  • Mfr # 951766

  • Zoro # G8651314

product price:  $6,027.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Series
Millermatic 255
Input Voltage
208V AC, 220/230/240V AC
Welded Material
Mild Steel, Aluminum, Stainless Steel
Mild Steel - Material Thickness
24 ga to 1/2 in
Phase
Single-Phase
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
951766
Zoro #
G8651314
UPC #
715959668903
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 1/2 in
Overall Height
19.23 in
Overall Width
13.75 in
Overall Depth
26.25 in
Wire Size
0.023 in to 0.045 in
Aluminum - Material Thickness
18 ga to 1/2 in
Stainless Steel - Material Thickness
22 ga to 1/2 in
Minimum Wire Diameter
0.023 in (Solid Steel), 0.023 in (Stainless), 0.03 in (Flux-Cored), 0.035 in (Aluminum)
Power Cord Length
10 ft
Maximum Wire Diameter
0.045 in (Flux-Cored), 0.045 in (Solid)
For Maximum Material Thickness
1/2 in (Mild Steel)
For Minimum Material Thickness
24 ga (Mild Steel)

Details

Item
MIG Welder
Series
Millermatic 255
Input Voltage
208V AC, 220/230/240V AC
Welded Material
Mild Steel, Aluminum, Stainless Steel
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
50/60
Portability
Handheld Portable
Standards
CSA Certified
Output Range
20 to 350A DC
Duty Cycle
60 %
Rated Output
230A @ 25.5V DC
Application
MIG, Welding
Features
Auto-Line(TM) Technology, Auto-Set(TM) Elite, 7 in Color LCD, EZ-Latch(TM) Single Cylinder Running Gear, Compatible with Push-Pull MIG Guns, Pulsed MIG Welding
Input Amps
31/27
Includes
0.035/0.045 in Reversible Drive Rolls, 10 ft work cable and clamp and 50mm Dinse-style connector, 15 ft (4.5 m) 250 A MDX-250 MIG gun w/ Bernard AccuLock S consumables for 0.035/0.045 in. wire, Extra Contact Tips, EZ-Latch Running Gear, Flow gauge regulator and gas hose for argon or AR/CO2 mix
Enhanced Process
Pulsed MIG (GMAW-P)
Minimum Wire Feed Speed
50 in/min
MIG Welding Minimum Output Current
20 A
Maximum Wire Feed Speed
800 in/min
Polarity
DC
Plug Type
6-50P
MIG Welding Output @ Duty Cycle
230 A @ 25.5 V, 60%
MIG Welding Maximum Output Current
350 A
For Wire Type
Flux-Cored, Solid
Amperage Range
20 to 350 A
Welding Mode
CC/CV
Power Cord Included
Yes
Input Frequency
60 Hz
For Material Type
Mild Steel, Stainless Steel
Model
951766

Description

MIG Welder, Series Millermatic 255, Input Voltage 208V AC, 220/230/240V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.045 in (Flux-Cored), 0.045 in (Solid), Maximum Wire Feed Speed 800 in/min, Model 951766, MIG Welding Output @ Duty Cycle 230 A @ 25.5 V, 60 Percent
