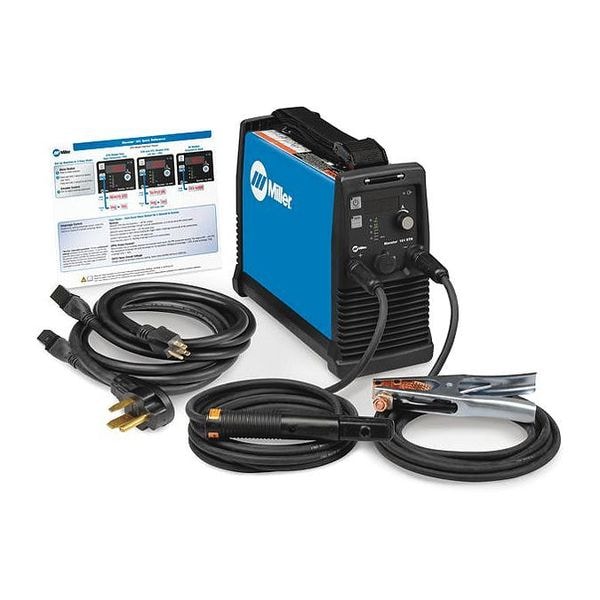

Miller Electric TIG Welder, Maxstar 161 STH Series, 110/115/120V AC, 220/230/240V AC, 160 Max. Output Amps 907711 - main

TIG Welder, Maxstar 161 STH Series, 110/115/120V AC, 220/230/240V AC, 160 Max. Output Amps

  • Mfr # 907711

  • Zoro # G6638637

product price:  $3,781.99
/ea
Free Shipping & Returns

Key Features

Welder Industrial Class
Light
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.020 in to 3/16 in
Aluminum - Material Thickness
Thin Gauge to 3/16 in
Input Voltage
110/115/120/220/230/240V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
907711
Zoro #
G6638637
UPC #
715959645614
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.020 in to 3/16 in
Aluminum - Material Thickness
Thin Gauge to 3/16 in
Overall Depth
13.5 in
Overall Width
5.61 in
Overall Height
10.3 in
Power Cord Length
6 1/2 ft
For Maximum Material Thickness
3/16 in (Steel)
For Minimum Material Thickness
0.020 in (Steel)
For Stainless Steel Thickness - Minimum
1/50 in
For Steel Thickness - Minimum
1/50 in
For Stainless Steel Thickness - Maximum
3/16 in
For Steel Thickness - Maximum
3/16 in

Details

Welder Industrial Class
Light
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
110/115/120/220/230/240V AC
Rated Output
130A @ 15.2V
Welder Max. Output Amps
160
Welder Min. Output Amps
5
Welder Duty Cycle
60 %
Series
Maxstar 161 STH
Power Source Weight
13 lb
Input (Amps)
15
Features
Auto Line Power Management Technology, Fan-On-Demand(TM), Hot Start(TM), Single Amperage Range, Thermal Overload Protection
Polarity
DC
Welder Input Hz
50/60
Includes
10 ft (3 m) work clamp with 25 mm Dinse-style connector, 13 ft (4 m) stick electrode holder with 25 mm Dinse-style connector
Welded Material
Mild Steel, Stainless Steel
Welder Input Phase
1
Application
Aerospace, Aluminum Ship Repair, Anodized Aluminum Fabrication, Heavy Fabrication, Pipe and Tube Fabrication, Precision Fabrication
Phase
Single
Standards
CSA, ISO
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Input Frequency
50/60 Hz
Plug Type
5-15P
Stick Welding Minimum Output Current
20 A
TIG Welding Minimum Output Current
5 A
TIG Welding Output @ Duty Cycle
110 A @ 14.4 VDC, 100%, 130 A @ 15.2 VDC, 30%, 160 A @ 16.4 VDC, 20%, 90 A @ 13.6 VDC, 100%
Welding Mode
CC
Max. Input Current
23.16 A @ 120V (Single-Phase)
Weight
13 lb
Remote Control
Remote Control Not Included
For Material Type
Stainless Steel, Steel
Stick Welding Output @ Duty Cycle
110 A @ 24.4 VDC, 100%, 160 A @ 26.4 VDC, 20%, 60 A @ 22.4 VDC, 100%, 90 A @ 23.6 VDC, 30%
Open Circuit Voltage
48V DC
Stick Welding Maximum Output Current
160 A
Remote Connection Type
6-Pin (Miller)
Amperage Range
5 to 160 A
Pulse Frequency
0 to 150 pulses/second
Power Cord Included
Yes
Color
Blue
TIG Welding Maximum Output Current
160 A
Model
907711
Welding Power Source Type
CC
Amperage Stick - Minimum
20 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Maximum Input Current
23.16 A @ 120V (Single-Phase)
Amperage TIG - Minimum
5 A
Amperage TIG - Maximum
160 A
Amperage Stick - Maximum
160 A
Rated Output @ Duty Cycle (TIG)
110 A @ 14.4 VDC, 100%, 130 A @ 15.2 VDC, 30%, 160 A @ 16.4 VDC, 20%, 90 A @ 13.6 VDC, 100%
Rated Output @ Duty Cycle (Stick)
110 A @ 24.4 VDC, 100%, 160 A @ 26.4 VDC, 20%, 60 A @ 22.4 VDC, 100%, 90 A @ 23.6 VDC, 30%

Description

TIG Welder, For Material Type Stainless Steel, Steel, For Maximum Material Thickness 3/16 in (Steel), For Minimum Material Thickness 0.020 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 23.16 A @ 120V (Single-Phase), Phase Single-Phase, Polarity DC, Series Maxstar 161 STH, Stick Welding Maximum Output Current 160 A, Stick Welding Minimum Output Current 20 A
