Shop MILLER ELECTRIC

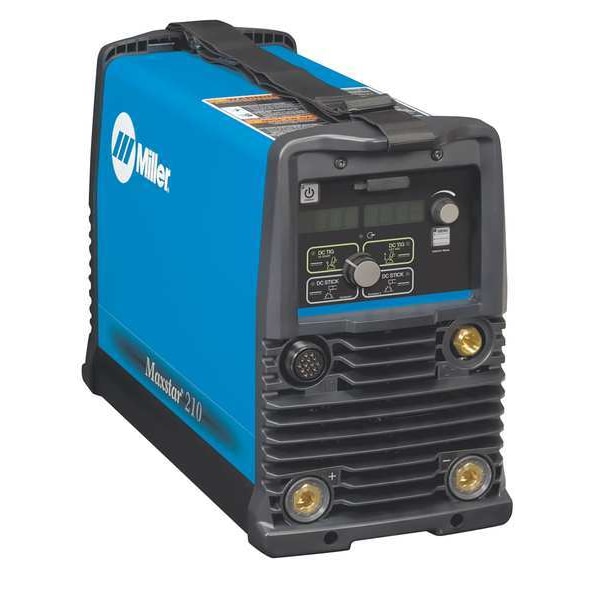

TIG Welder, Maxstar 210 Series, 110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC

  • Mfr # 907683
  • Zoro # G1584655
product price:
$
5,948.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.004 in to 1/4 in
Aluminum - Material Thickness
0.012 in to 3/8 in
Input Voltage
110V AC, 115V AC, 120V AC, 208V AC, 220V AC, 230V AC, 240V AC, 380V AC, 400V AC, 460V AC, 480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907683
Zoro #
G1584655
UPC #
715959620031
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.004 in to 1/4 in
Aluminum - Material Thickness
0.012 in to 3/8 in
Overall Height
13.61 in
Overall Depth
19.5 in
Overall Width
8.61 in
Power Cord Length
8 ft
For Minimum Material Thickness
0.002 in
For Maximum Material Thickness
1/4 in
For Stainless Steel Thickness - Maximum
1/14 in
For Stainless Steel Thickness - Minimum
1/500 in
For Steel Thickness - Minimum
1/500 in
For Steel Thickness - Maximum
1/14 in

Details

Item
TIG Welder
Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
110V AC, 115V AC, 120V AC, 208V AC, 220V AC, 230V AC, 240V AC, 380V AC, 400V AC, 460V AC, 480V AC
Rated Output
210A @ 18V
Welder Max. Output Amps
210
Welder Min. Output Amps
1
Welder Duty Cycle
60 %
Series
Maxstar 210
Welded Material
Mild Steel, Stainless Steel
Features
Wireless Remote Compatible
Welder Input Phase
1 or 3
Welder Input Hz
50/60
Polarity
DC
Input (Amps)
26/6
Power Source Weight
38 lb
Application
Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard
Includes
Power Source Only
Phase
Single/Three
Standards
CE, CSA, ISO
Stick Welding Maximum Output Current
210 A
Max. Input Current
15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase)
Stick Welding Output @ Duty Cycle
160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60%
Remote Connection Type
14-Pin (Miller)
Plug Type
Bare Leads
Power Cord Included
Yes
Input Frequency
50/60 Hz
TIG Welding Output @ Duty Cycle
210 A @ 18.4 V, 60%, 125 A @ 15 V, 60%
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Stick Welding Minimum Output Current
5 A
Open Circuit Voltage
80V DC
For Material Type
Specialty Metals, Stainless Steel, Steel
Weight
38 lb
Remote Control
Remote Control Not Included
Amperage Range
1 to 210 A
Color
Blue
Welding Mode
CC
TIG Welding Minimum Output Current
1 A
TIG Welding Maximum Output Current
210 A
Model
907683
Rated Output @ Duty Cycle (Stick)
160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60%
Amperage TIG - Maximum
210 A
Amperage Stick - Maximum
210 A
Amperage TIG - Minimum
1 A
Rated Output @ Duty Cycle (TIG)
210 A @ 18.4 V, 60%, 125 A @ 15 V, 60%
Maximum Input Current
15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase)
Welding Power Source Type
CC
Amperage Stick - Minimum
5 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)

Description

TIG Welder, For Material Type Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 1/4 in, For Minimum Material Thickness 0.002 in, Input Frequency 50/60 Hz, Max. Input Current 15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity DC, Series Maxstar 210, Stick Welding Maximum Output Current 210 A, Stick Welding Minimum Output Current 5 A, Stick Welding Output @ Duty Cycle 160 A @ 26.4 V, 60 Percent, 90 A @ 23.6 V, 60 Percent
