  11. CGrid Bkwy Hdr DR RtPn 30SAu 8Ckt

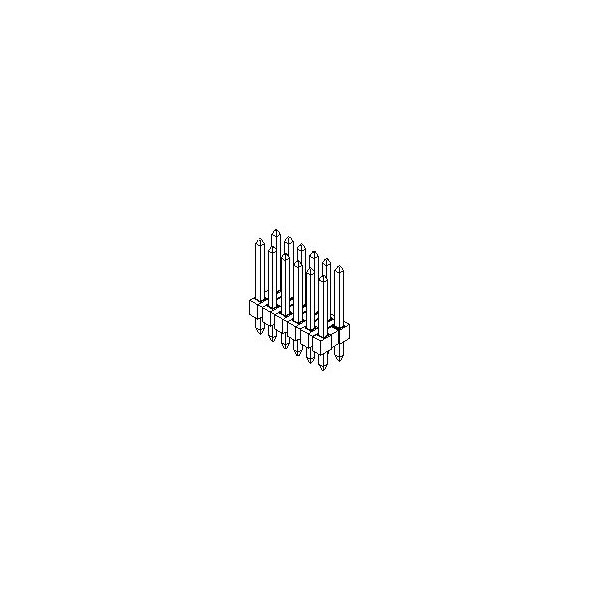

Molex CGrid Bkwy Hdr DR RtPn 30SAu 8Ckt 70287-1198 - main

CGrid Bkwy Hdr DR RtPn 30SAu 8Ckt

  • Mfr # 70287-1198

  • Zoro # G7804191

product price: $0.66
/ea
Sold in multiples of 100 for $66.00

Key Features

Material - Plating Mating
Gold
Color - Resin
Black
Material - Plating Termination
Tin
Orientation
Vertical
Circuits (maximum)
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70287-1198
Zoro #
G7804191
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.57mm
PC Tail Length
3.18mm

Details

Material - Plating Mating
Gold
Color - Resin
Black
Material - Plating Termination
Tin
Orientation
Vertical
Circuits (maximum)
8
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
2.54mm
Material - Metal
Brass
Circuits (Loaded)
8
Temperature Range - Operating
-40° to +120°C
Durability (mating cycles max)
25
Stackable
Yes
Termination Interface: Style
Through Hole
Process Temperature max. C
260
Surface Mount Compatible (SMC)
Yes
Voltage - Maximum
250V DC
Number of Rows
2
Plating min - Termination
2.032µm
Max. Cycles at Max. Process Temperature
1
Duration at Max. Process Temperature (seconds)
5
CSA
LR19980
Current - Maximum per Contact
3.0A
Pitch - Termination Interface
2.54mm
Plating min - Mating
0.813µm
Breakaway
Yes
Flammability
94V-0
UL
E29179
