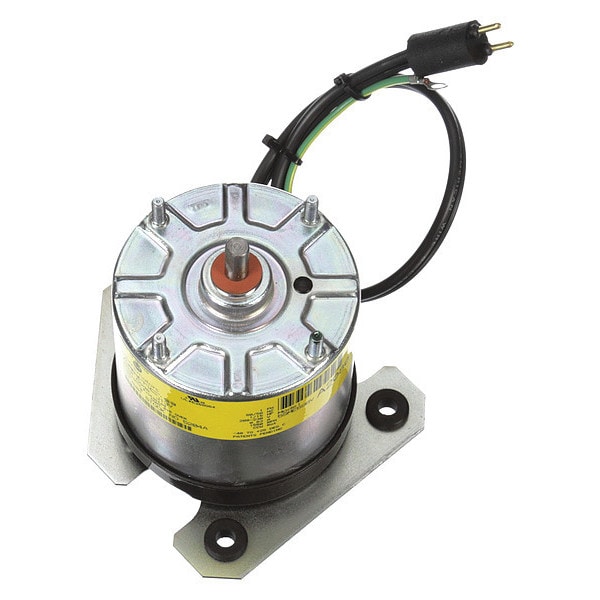

Direct Drive Blower Motor, 1/15 hp
Mfr # 5204A
Zoro # G5246631
product price: $241.99
/ea
Free Shipping & Returns
Key Features
Motor Sub Application
Refrigerator/Freezer
HP
1/15
Output Watts
50 W
RPM Range
1,501-1,600
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5204A
Zoro #
G5246631
UPC #
815585024699
Country of Origin
Mexico
Dimensions
Shaft Length
1 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Length Less Shaft
4 1/16 in
Bolt Circle Dia.
2 7/8 in
Overall Length
4 13/16 in
Lead Length
15 in
Description
ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.63 A, 3.3 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Electronic, 60/50 Hz Hz, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 25 Degrees C, Duty Cycle Continuous, Lead Length 15 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Vertical Shaft Down
