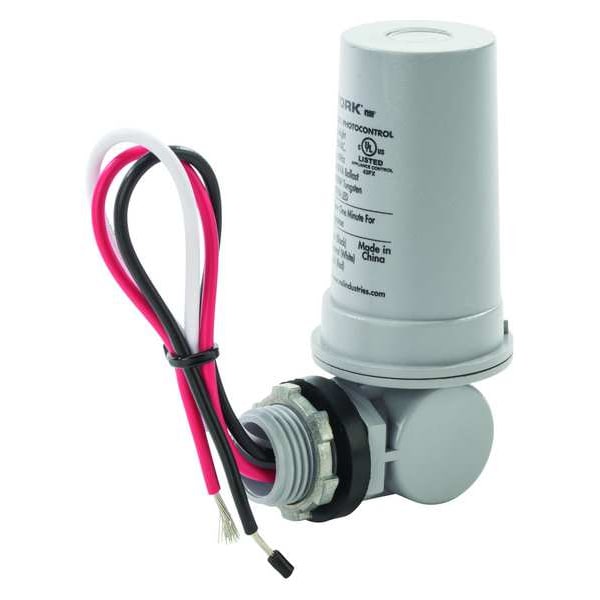

Compact Fluorescent, HID, Inductive, LED Photocontrol, 2,000 W, Gray, 3 sec Max, 2 sec Min

  • Mfr # 2021

  • Zoro # G2072682


product price: $13.79
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 140 Degrees F
Setting
Dusk to Dawn
For Use With
Decorative Lighting, Flood and Patio Lamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2021
Zoro #
G2072682
UPC #
786261600240
Country of Origin
China

Dimensions

Width
1 5/8 in
Manufacturers Warranty Length
5 yr
Depth
1 5/8 in
Length
4 7/8 in
Overall Height
4.88 in
Stem Thread Size
1/2''
Stem Diameter
1/2 in

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 140 Degrees F
Setting
Dusk to Dawn
For Use With
Decorative Lighting, Flood and Patio Lamp
Includes
Gasket, Lock Nut
Housing Material
Polycarbonate
Standards
UL 773A
Description/Special Features
Built-In Delay of Up to 2 min Prevents False Switching, LED Rated
Enclosure Type
Raintight
Contact Form
SPST
Wattage - Maximum
2,000 W
Ballast Current - Maximum
0.416666667
Incandescent Current - Maximum
16.7 A
Indoor/Outdoor Usage
Outdoor
On Illumination - Minimum
1 fc
Resistance Properties
Moisture Resistant, Weather Resistant
Series
2020
Body Color
Gray
Off Illumination - Minimum
3 fc
Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
Time Delay - Minimum
2 sec
Operating Temperature - Maximum
140 Degrees F
On Illumination - Maximum
5 fc
AC Operating Voltage
120V AC
Operating Temperature - Minimum
-40 Degrees F
Mounting Style
1/2 in Conduit, Stem and Swivel
Time Delay - Maximum
3 sec
Off Illumination - Maximum
15 fc

Description

Photocontrol, Mounting 1/2 in Conduit, 180 Degrees Swivel, Voltage 120V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 15 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 140 Degrees F, Length 4 7/8 in, Width 1 5/8 in, Depth 1 5/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL 773A, Includes Gasket, Lock Nut
