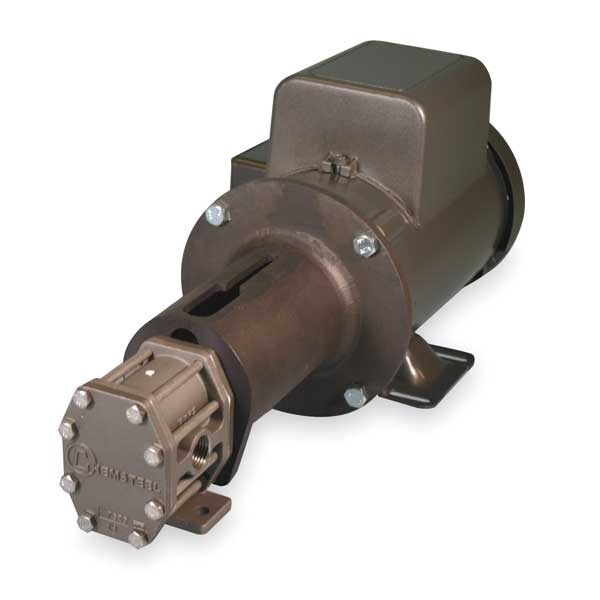

Rotary Gear Pump, 1 HP, 1 Phase

OBERDORFER| Zoro #: G1604014| Mfr #: S21016CAC1-N47

$3069.99 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1604014 Mfr #: S21016CAC1-N47
Motor Enclosure: TEFCGPM @ Freeflow: 5.6
GPM @ 80 PSI: 5.6O-Ring: PTFE Encapsulated Silicone
Amps: 12.8/6.4Gear Material: 316 SS/Alloy 20 Helical
GPM @ 60 PSI: 5.75Item: Rotary Gear Pump
Width (In.): 6.63Body Material: 316 Stainless Steel
GPM Max.: 6.3Max. RPM: 1725
Gears: HelicalPort Size (In.): 1/2
Suction Lift (Ft.): 6GPM @ 40 PSI: 5.9
Motor Frame: 56CVoltage: 115/230
GPM @ 100 PSI: 5.25Type: Close Coupled
Height (In.): 6.88Length (In.): 17.18
Seal: Type 9T Mechanical with Stainless Steel, PTFEShaft Material: 316 Stainless steel
Min. Temp. (F): -50GPM @ 20 PSI: 6
HP: 1Phase: 1
Max. Temp. (F): 450Manufacturers Warranty Length: 1 YEAR
Bushing: Carbon GraphiteMax. Viscosity (SSU): 100
Max. Pressure (PSI): 110Country of Origin (subject to change): United States

Product Description

Rotary Gear Pump With Motor, Close Coupled, 1 HP, 1 Phase, Voltage 115/230, 12.8/6.4 Amps AC, Motor Frame 56C, Motor Enclosure TEFC, Port Size 1/2 In., Suction Lift 6 Ft., GPM @ Freeflow 5.6, GPM @ 100 PSI 5.25, GPM Max. 6.3, Max. Pressure (PSI) 110
