Shop OMRON

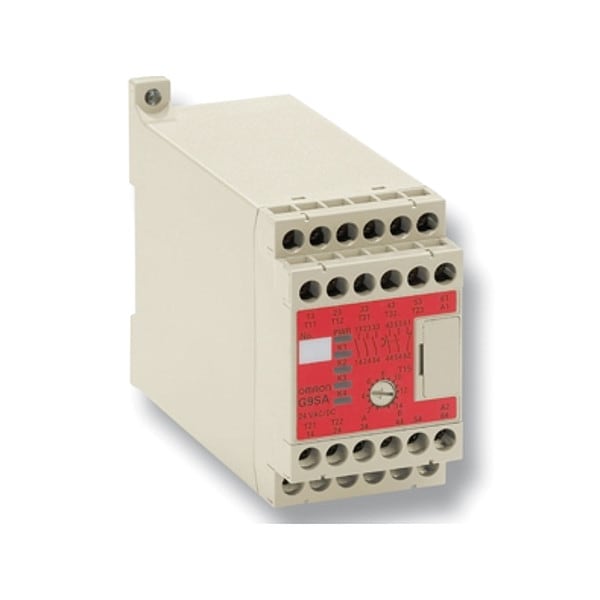

Safety Relay, 3.7 in Body H, 50/60 Hz

  • Mfr # G9SA-TH301 AC/DC24
  • Zoro # G710080146

product price:
$
425.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3PST-NO, SPST-NC
Response Time
10 msec
IP Rating
IP20
For Use With
Two-hand Controllers
Standards
EN ISO13849-1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
G9SA-TH301 AC/DC24
Zoro #
G710080146
UPC #
4547648813990
Country of Origin
China
Item
Safety Relay
Contact Form
3PST-NO, SPST-NC
Response Time
10 msec
IP Rating
IP20
For Use With
Two-hand Controllers
Standards
EN ISO13849-1
Power Consumption
5.7 VA, 9 VA
Input Voltage
100 to 240V AC, 24V AC/DC
Series
G9SA Series
Mechanical Operating Durability
5,000,000
Output Switch Configuration
(1) NC Aux, (3) NO Main
Weight
7.4 oz
Delay Time
0.01 sec
Minimum Operating Temperature
-13 Degrees F
Coil Resistance
100 ohm
Number of Inputs
2
Maximum Operating Temperature
131 Degrees F
Status Indicator
LED
Mounting Style
DIN Rail & Surface
Number of Pins
20
Safety Reliability Data
EN574 (-TH301), EN60204-1, EN954-1
Electrical Connection
Screw Terminal
Contact Rating (AC)
5 A @ 250V
Number of Input Channels
2
Delay Type
Adjustable
Resistance Properties
Vibration-Resistant
Frequency
50/60 Hz
Features
DIN Track Mounting and Screw Mounting Both Possible
Application
Emergency Stop
Contact Rating (DC)
5 A @ 30V
Electrical Operating Durability
100,000
Compatible Product Type
Two-hand Controllers

Dimensions

Body Width
1.77 in
Body Depth
4.37 in
Overall Depth
4.37 in
Body Height
3.7 in
Fits Chest Size
DIN Track Mounting and Screw Mounting Both Possible

Description

Safety Relay, Coil Resistance 100 ohm, Contact Form 3PST-NO, SPST-NC, Delay Time 0.01 sec, Delay Type Adjustable, Electrical Connection Screw Terminal, IP Rating IP20, Input Voltage 100 to 240V AC, 24V AC/DC, Mounting Style DIN Rail & Surface, Number of Inputs 2, Number of Pins 20, Output Switch Configuration (1) NC Aux, (3) NO Main, Response Time 10 msec, Status Indicator LED, Standards EN ISO13849-1, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 30V

Restrictions

This item has been restricted from sale in the following states: CA
