  13. Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

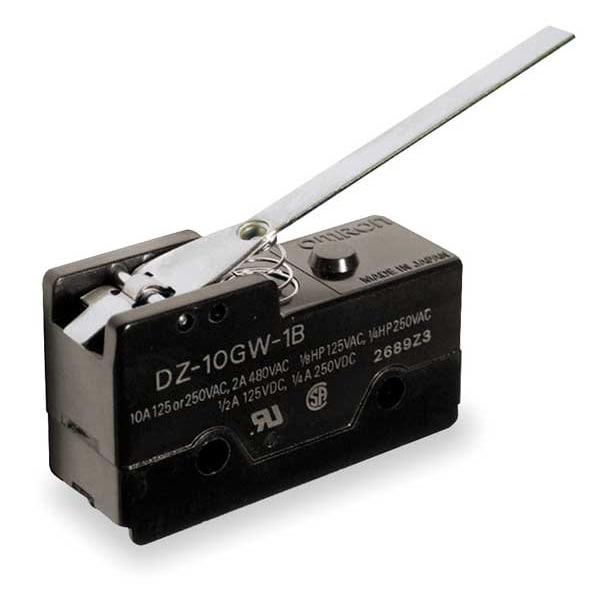

Omron Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GW-1B - main

Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GW-1B

  • Zoro # G1787195

product price: $24.45
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GW-1B
Zoro #
G1787195
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Mounting Dimension
1.00" Centers
Actuator Length
2.50"
Height
1.10"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Body Height
0.69 in
Body Depth
2.15 in
Overall Height
0.69 in
Mounting Hole Diameter
3/16 in
Lever Actuator Length
2.5 in
Overall Depth
2.15 in
Overall Width
2.87 in
Body Width
2.87 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Over Travel
0.063 in
Type of Actuator
Hinge Lever
Operating Temp. Range
-25 Degrees to 80 Degrees C
Differential Travel
0.157 in
Current Rating
10A
Terminal Type
Screw
Housing Material
Plastic
Watertight - Snap Action Switch
No
Standards
CSA, RU
Contact Form
3NO/3NC
Voltage Rating
480VAC
Operating Force
6 oz
Electrical Connection - Snap Action Switch
Screw
Series
DZ
Max. Pretravel
1.004 in
Release Force
0.97 ozf
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
2 A @ 480 V
Electrical Connection
Screw
Center Mounting Hole Distance
1 in
Operating Force - Minimum
1.67 N
Differential Travel - Maximum
0.1575 in
Overtravel
0.063 in
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
Pretravel
1.004 in
Operating Force - Maximum
1.67 N
Body Material
Plastic
Actuator Style
Hinge Lever

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
