  13. Snap Action Switch, Hinge, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating

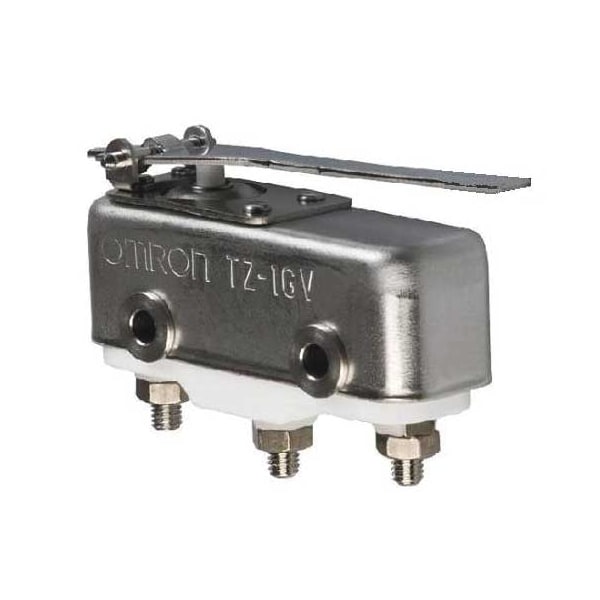

Omron Snap Action Switch, Hinge, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating TZ-1GV - main

Snap Action Switch, Hinge, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating

  • Mfr # TZ-1GV

  • Zoro # G1102726

product price: $328.99
/ea
Free Shipping & Returns

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
1 A @ 240 V
DC Contact Rating - Snap Action Switch
1 A @ 30 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TZ-1GV
Zoro #
G1102726
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.26 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.26"
Depth
0.69"
Mounting Dimension
1.00" Centers
Actuator Length
2.50"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Overall Height
0.69 in
Overall Depth
0.69 in
Overall Width
1.94 in
Mounting Hole Diameter
1/8 in
Body Depth
0.69 in
Body Height
0.69 in
Lever Actuator Length
2.5 in
Body Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
1 A @ 240 V
DC Contact Rating - Snap Action Switch
1 A @ 30 V
Contact Form- Switches
SPDT
Electrical Connection - Snap Action Switch
Bolt
Terminal Type
Bolt
Differential Travel
0.051 in
Type of Actuator
Hinge Lever
Series
TZ
Max. Pretravel
0.138 in
Current Rating
1A
Operating Temp. Range
-85 Degrees to 752 Degrees F
Contact Form
1NO/1NC
Operating Force
3.53 oz
Watertight - Snap Action Switch
No
Housing Material
Phenolic
Voltage Rating
125/250VAC
Release Force
0.5 ozf
Over Travel
0.181 in
DC Contact Rating
1 A @ 30 V
AC Contact Rating
1 A @ 240 V
Operating Force - Minimum
0.98 N
Center Mounting Hole Distance
1 in
Actuator Style
Hinge Lever
Differential Travel - Maximum
0.0512 in
Operating Temperature - Minimum
-85 Degrees F
Overtravel
0.189 in
Electrical Connection
Screw
Pretravel
0.138 in
Operating Temperature - Maximum
752 Degrees F
Operating Force - Maximum
0.98 N
Body Material
Phenolic

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 1 A @ 240 V, DC Contact Rating - Snap Action Switch 1 A @ 30 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.26 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Bolt, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series TZ
