Encoder
Mfr # MHMF082L1U2M
Zoro # G023561707
product price:
$
469.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MHMF082L1U2M
- Zoro #
- G023561707
- UPC #
- -
- Country of Origin
- Japan
Description

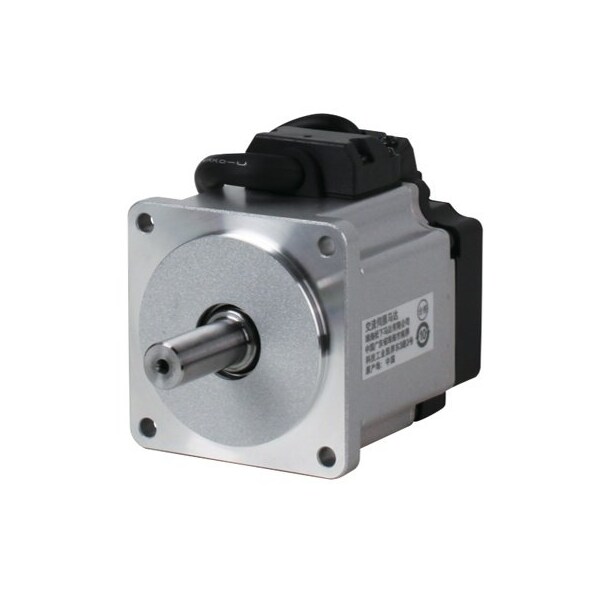

High-inertia AC servo motor from Panasonic MINAS A6 series designed for precise motion control in industrial automation systems. It delivers stable high-speed performance with 23-bit encoder feedback, suitable for robotics, CNC, and high-accuracy positioning applications. Specifications: -Type: AC Servo Motor -Series: MINAS A6 (MHMF Series) -Frame Size: 80 mm sq. -Rated Output: 750 W -Rated Voltage: 200 V AC -Rated Current: 3.8 A (rms) -Rated Torque: 2.39 Nm -Continuous Stall Torque: 2.86 Nm -Peak Torque: 8.36 Nm -Rated Speed: 3000 rpm -Max Speed: 6000 rpm -Encoder Type: 23-bit Absolute / Incremental -Protection Rating: IP65 -Shaft Type: Keyway, center tap -Brake: Without holding brake -Oil Seal: Included -Inertia: 1.56 x 10−4 kgm sq -Mounting Type: Flange Mount -Lead Type: Lead wire connection
