Shop PANDUIT

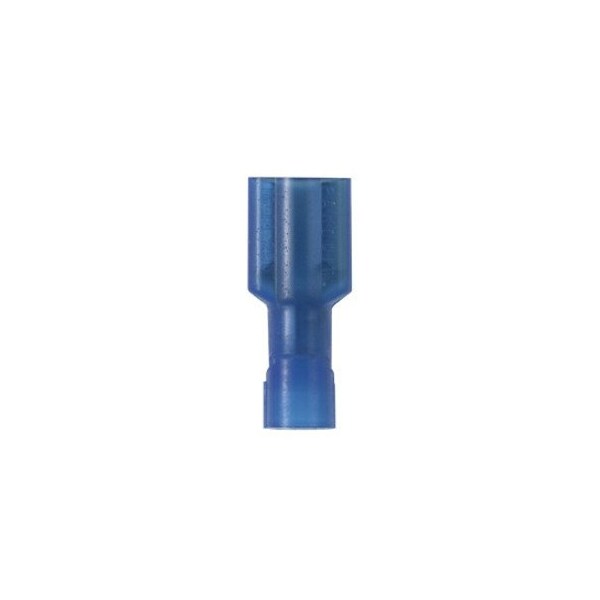

Female Disconnect, Nylon, 16-14AWG, PK100

  • Mfr # DNF14-206FIB-C
  • Zoro # G0765359
product price:
$
88.45
/pk 100, $0.88/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.78 in
Length
0.8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF14-206FIB-C
Zoro #
G0765359
UPC #
7498382671
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Length
0.8"
Width
0.3"
Height
0.2"
Maximum Wire Insulation Diameter (In.)
0.16
Maximum Wire Size (AWG)
#14
Insulation Diameter (In.)
0.16
Tab Size (In.)
0.205/0.187 x 0.020
Maximum Copper Conductor Size (AWG)
#14
Insulation Diameter (mm)
4.1
Minimum Metric Conductor Size (mm²)
1.5
Tab Size (mm)
5.2/4.8 x 0.5
Wire Strip Length (In.)
11933
Overall Length (In.)
0.78
Overall Width (In.)
0.31
Overall Width (mm)
7.9
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Wire Strip Length (mm)
7.1
Maximum Metric Conductor Size (mm²)
2.5
Maximum Wire Insulation Diameter (mm)
4.1
Overall Length (mm)
19.8
Diameter
0.2"

Details

Item
Female Disconnect,Nylon,16-14AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Finish
Tinned
Base Material
Brass
Insulation Material
Nylon
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Seam Type
Butted
Product Type
Disconnect
Barrel Type
Funnel
Maximum Voltage (kV)
0.6
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°F)
221
Flammability Rating
UL94-HB
Maximum Voltage (V)
600
Maximum Operating Temperature (°C)
105
Disconnect Type
Female Disconnect
Tongue Angle
Straight
Connector Plating
Tin
Product Name
Terminal Connector
Product Material
Nylon, Brass
Product Color
Blue
Product Class
Disconnects

Description

Female Disconnect,Nylon,16-14AWG,PK100, Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
