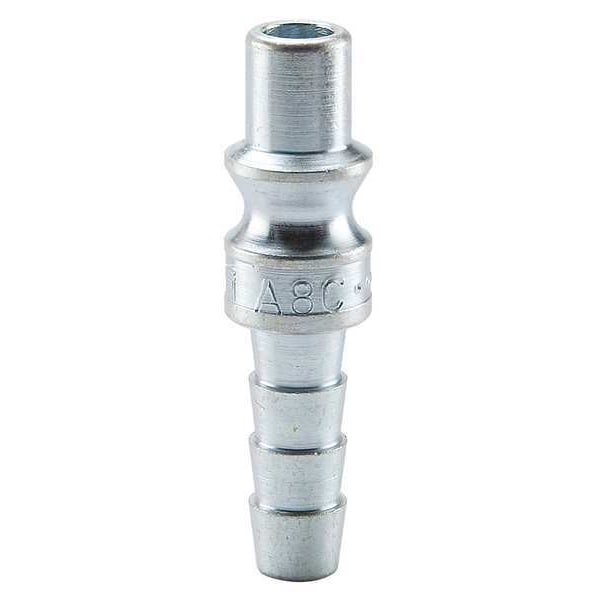

Coupler Plug, Steel, Hose Barb, 25 cfm
Mfr # A8C
Zoro # G4872777
Key Features
Specifications
Product Information
- MFR #
- A8C
- Zoro #
- G4872777
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Barb Size
- 1/4 in
- Overall Length
- 1 5/8 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 7/16 in
- Wire Rope Length
- 1 5/8 in
- Length
- 1 5/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- ARO
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Trivalent Chrome
- Max. Flow Rate
- 25 cfm
- Coupling Locking Type
- Sleeve
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- For Hose I.D.
- 1/4 in
- Barbed
- Yes
- Max. Working Pressure @ 70 F
- 300 psi
Description
The PARKER - A8C is a quick connect hose coupling designed for pneumatic applications. It allows rapid, tool-free connection and disconnection of hoses via a sleeve locking mechanism. This plug-type coupling provides a seal when mated to a 1/4 in hose inner diameter and barbed hose ends (as specified), facilitating efficient hose changes. Manufactured from steel with a trivalent chrome finish, it operates within a temperature range of -40°F to 250°F and supports a maximum working pressure of 300 psi at 70°F. The coupling is compatible with the ARO interchange standard.
- Application: Pneumatic use.
- Connection Type: Hose barb with male fitting gender.
- Barb Size and Hose Fitting Size: 1/4 in nominal diameter.
- Coupling Size and Body Size: 1/4 in quick-connect air coupling size.
- Coupling Locking Type: Sleeve mechanism for secure attachment.
- Material: Steel body construction with trivalent chrome finish.
- Maximum Flow Rate: 25 cubic feet per minute (CFM).
- Maximum Working Pressure: 300 psi at 70°F.
- Overall Length: 1.63 in (1 5/8 in).
- Maximum Outside Diameter: 0.4375 in (7/16 in).
- Operating Temperature Range: -40°F to 250°F.
- Interchange Type: Compatible with ARO style fittings.
- Includes Valve: No integrated valve included.
