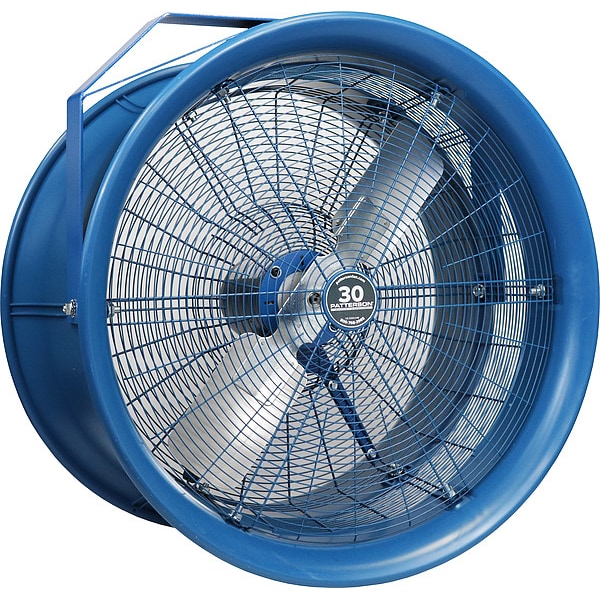

Patterson High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 30 in Blade Dia, 277V, 12,000 cfm H30C - main

High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 30 in Blade Dia, 277V, 12,000 cfm

  • Mfr # H30C

  • Zoro # G910070688

product price: $2,110.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H30C
Zoro #
G910070688
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
30 in
Width
37 in
Height
38-1/8 in
Max. Depth
22 in
Depth
22 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V
Phase
1
Motor HP
1 hp
Air Flow
12,000 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Hardwired
Sound Level
82.2 dBA @ 20 ft; 85.5 dBA @ 3 ft
Item
High Velocity Industrial Fan
Standards
OSHA Compliant Guards
Number of Blades
2
Motor Type
Continuous Duty
Max. Ambient Temp.
104 Degrees F
For Use With
Chain Ceiling Mount, Floor Mount, Column and Wall Mount
Includes
Fan Head, OSHA Guards, Yoke Mount
Color
Blue/Silver
Motor Enclosure
Totally Enclosed Air Over
Motor RPM
1,800/1,200 RPM
Fan Mounting Location
Ceiling, Column, Floor, Wall
Thermal Protection
Automatic Reset
Amps
5.6 A @ 277 V
Air Velocity @ 60 Ft.
400 fpm
Air Velocity @ 80 Ft.
350 fpm
Air Velocity @ 20 Ft.
850 fpm
Housing Material
Polypropylene
RPM
1800/1200 RPM
Air Velocity @ 10 Ft.
1,650 fpm
Wire Guard Finish
Powder Coated
Motor Insulation
Class F
Guard Material
Spiral Wound Steel
Bearing Type
Ball
Features
Long Air Throw
Air Velocity @ 40 Ft.
550 fpm
Battery Operated - Fans
No
Fan Housing Material
Polypropylene
Head Tilt Adjustment
15 Degrees
Fan Blade Finish
Mill
Housing Finish - Fans
Matte
Fan Blade Color
Silver
Motor hp
1 hp

Description

Fan Head, 30 in Dia, Polypropylene, Blue
