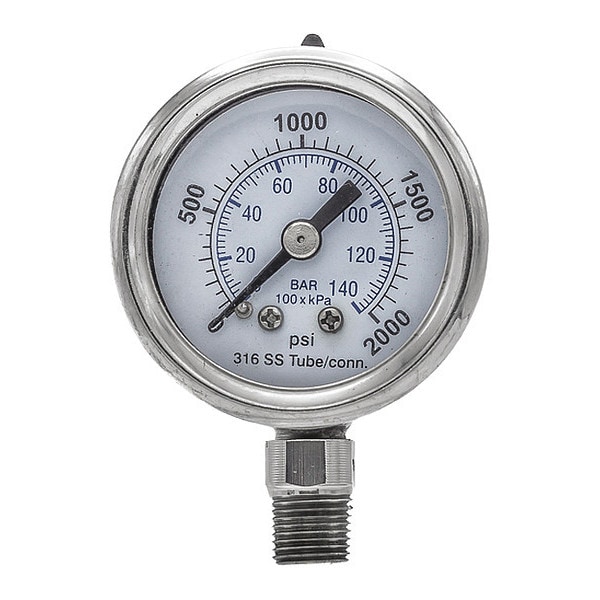

Pic Gauges Industrial Pressure Gauge, 0 to 2,000 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location PRO-301D-158O-01 - main

Industrial Pressure Gauge, 0 to 2,000 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PRO-301D-158O-01

  • Zoro # G7286984

product price:  $15.15
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301D-158O-01
Zoro #
G7286984
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Nominal Dial Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 2,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Numbered Graduations
400
Gauge Primary Range Smallest Graduation
500
Includes
Vent Plug
Calibration Certificate Included
No
Case Color
Metallic
Case Material
Stainless Steel
Gauge Secondary Range Values
0 to 2000
Socket Material
316 Stainless Steel
Graduations
500 psi
Gauge Special Options
Field Liquid Fillable
Standards
ASME
Connection Type
MNPT
Cleaned for Oxygen Service
No
Dial Face Material
Stainless Steel
Pressure Range Type
Pressure
Bezel Mounting Type
Fixed
Secondary Scale Units
bar
Scale Type
Dual
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Accuracy Grade
ASME B40.100 Grade A
Removable Bezel
No
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Color
Black
Secondary Pressure Range
0 to 138
Primary Scale Minor Graduations
400
Gauge Case Liquid
None
Freeze Resistant Movement
No
Bezel Material
Stainless Steel
Primary Scale Numeric Increments
400
Process Connection Gender
Male
Dry Dampening Feature
None
Pointer Material
Aluminum
Includes Mounting Hardware
No
Accuracy Scale
Mid-Scale
Dial Color
White
Vibration Resistance
Field-Fillable
Field Fillable
Yes
Includes Vent Plug
No
Non-Sparking
No
Includes Calibration Certificate
No
Sensor Material
316 Stainless Steel
Operating Temperature Range
-30 Degrees to 180 Degrees F
Case Liquid
None
Secondary Scale Vacuum Measurement - Maximum
140 bar
Compatible with Brand
Universal
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Minimum
-30 Degrees F
Compatible with Series
300
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
138 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Maximum
2,000 psi
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Maximum
2,000 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 2,000, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
