Plast-O-Matic

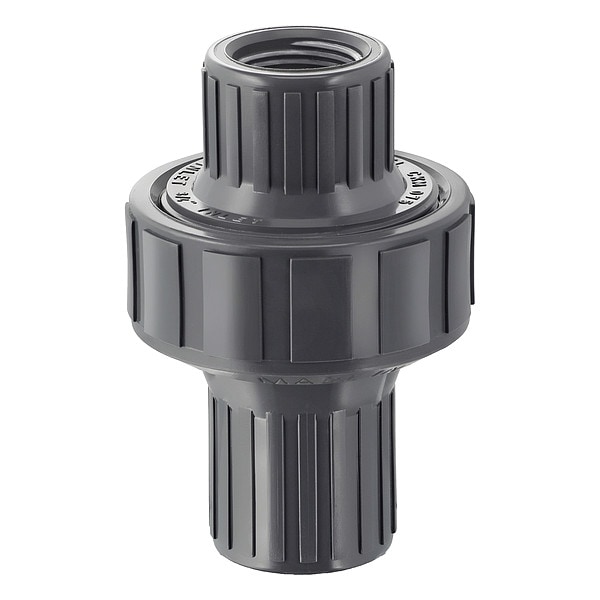

1" FNPT PVC Disc Check Valve
- Zoro #: G4078261
- Mfr #: CKM100V-PV
Tap to zoom
Hover or click to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $125.90
Plast-O-Matic #CKM100V-PV Specifications
- Zoro #: G4078261
- Mfr #: CKM100V-PV
- Pipe Size: 1"
- Connection Type: Threaded
- Body Material: PVC
- Cracking Pressure - Check Valves: 1.000 to 1.500 psi
- Flow Design: Single
- Mounting Position: Any
- Overall Height: 4 45/64 in
- Item: Disc Check Valve
- Max. Pressure: Max Inlet Pressure: 150 psi, Max Back Pressure: 100 psi
- Standards: LEAD FREE COMPLIANT
- Max. Temp. - Valves: 140 Degrees F
- Mounting Orientation - Check Valves: Horizontal, Vertical
- Max. Water Pressure - Valves: 100 psi @ 75 Degrees F
- Body Material - Valves: PVC
- Item - Check Valves: Check Valve
- Min. Temp. - Valves: 32 Degrees F
- Application - Valves: Corrosives
- Sub-Category: PVC
- Size: 1"
- Full Flow - Valves: No
- Seat Material: Viton
- Seal Material - Check Valves: Viton
- Mechanism and Body Design: Inline Disc
- Flow - Valves: 12.0 gpm
- Material of Construction: PVC
- Connection Type - Check Valves: FNPT x Socket
- Cracking Pressure: 1.0 to 1.5 psi
- Width: 2 51/64 in
- Length: 4 23/32 in
- Cap to Inlet Center: 2 5/16 in
- Seat Material - Check Valves: Viton
- Pipe or Tube Size - Check Valves: 1 in
- Max. Temp.: 140 Degrees F
- Seal Material: Viton
- Max. Steam Pressure - Valves: Not Rated
- Mounting Orientation: Horizontal, Vertical
- Pipe or Tube Size: 1 in
- Length (Straight Wireway): 4 23/32 in
- Country of Origin (subject to change): United States
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Disc, Body Material - Valves PVC, Pipe or Tube Size - Check Valves 1 in, Connection Type - Check Valves FNPT x Socket, Cracking Pressure - Check Valves 1.000 to 1.500 psi, Mounting Orientation - Check Valves Horizontal, Vertical, Seal Material - Check Valves Viton, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 32 Degrees F, Max. Water Pressure - Valves 100 psi @ 75 Degrees F
