Shop PLAST-O-MATIC

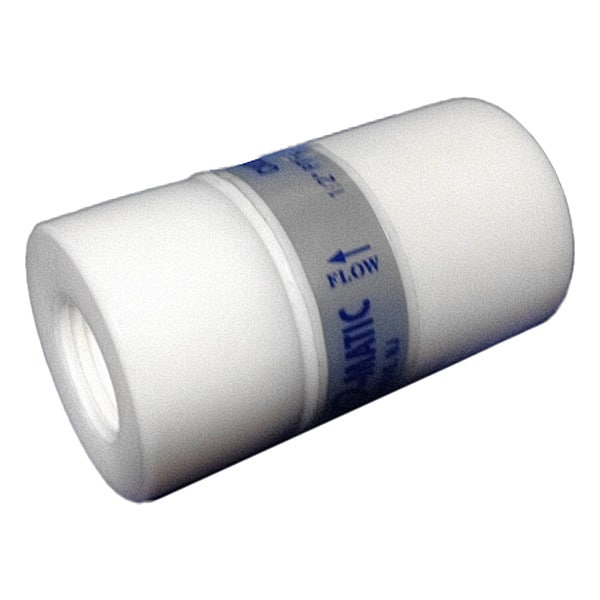

1/2" FNPT Polypropylene Disc Check Valve

  • Mfr # CKD050V-PP

  • Zoro # G3956145

product price:
$
207.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Standards
LEAD FREE COMPLIANT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CKD050V-PP
Zoro #
G3956145
UPC #
-
Country of Origin
United States
Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Standards
LEAD FREE COMPLIANT
Application - Valves
Corrosives
Item
Check Valve
Cap to Inlet Center
5 7/16 in
Material of Construction
polypropylene
Body Material - Valves
Polypropylene
Max. Temp. - Valves
180 Degrees F
Cracking Pressure - Check Valves
0.500 psi
Sub-Category
Polypropylene
Item - Check Valves
Check Valve
Seal Material
FKM
Seat Material - Check Valves
Viton
Flow - Valves
4.00 gpm
Max. Temp.
180 Degrees F
Min. Temp. - Valves
32 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Mounting Position
Any
Flow Design
Single
Seal Material - Check Valves
Viton
Mechanism and Body Design
Inline Disc
Full Flow - Valves
No
Cracking Pressure
0.5 psi
Max. Pressure
140 psi
Seat Material
FKM
Connection Type - Check Valves
FNPT x Socket
Max. Water Pressure - Valves
100 psi @ 77 Degrees F
Max. Steam Pressure - Valves
Not Rated
Flow
4 gpm
Mounting Orientation
Horizontal, Vertical
Seal
TFE, Carbon Filled
Silent Check
Silent
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Valve Body Style
Inline
Includes Counterweight
No Counterweight
For Media
Ultra-Pure Liquid
Coefficient of Volume (Cv)
1
Maximum Pressure - Operating
125 psi
Vacuum Service Rating
Not Rated
Connection Gender - Side 2
Female
Check Mechanism
Diaphragm
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 1
Female
Operating Temperature - Minimum
32 Degrees F
Check Mechanism Material
FKM
Maximum Pressure - Steam
Not Rated
Connection Type - Side 1
NPT
Valve Series
CKD

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Disc, Body Material - Valves Polypropylene, Pipe or Tube Size 1/2 in, Connection Type FNPT x Socket, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material Viton, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 32 Degrees F, Max. Water Pressure - Valves 100 psi @ 77 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material Viton, Flow - Valves 4 gpm
