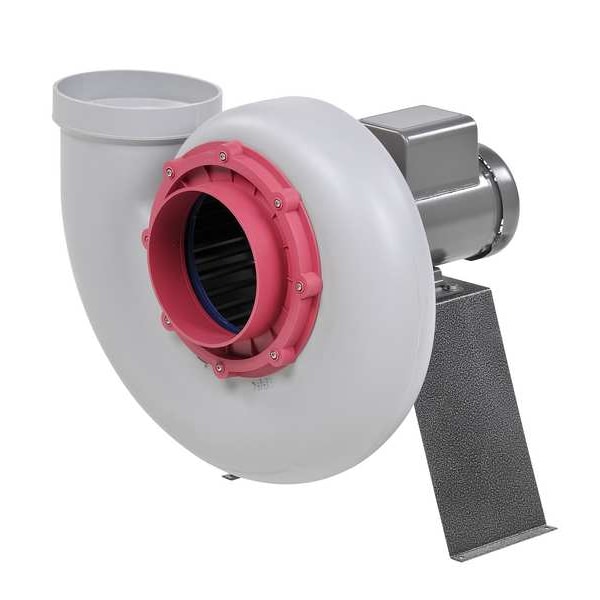

Plastec Blower, Forward Curve, 10 in

  • Mfr # P25SS4P075

  • Zoro # G100690122

product price:
$
2,548.99
/ea
Free Shipping & Returns

Key Features

Type
Direct Drive Forward Curve
Wheel Dia. (In.)
10 in
Voltage
115/230
Motor HP
3/4 hp
Motor Type
General Duty, Single Phase
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P25SS4P075
Zoro #
G100690122
UPC #
-
Country of Origin
United States
Item
Plastec Blower
Type
Direct Drive Forward Curve
Voltage
115/230
Motor HP
3/4 hp
Motor Type
General Duty, Single Phase
Bearing Type
Sealed, Permanently Lubricated Ball
Motor Enclosure
Totally Enclosed Fan Cooled
CFM @ 2.000-In. SP
400
Motor Frame
71
Hz
60 Hz
Agency Compliance
AMCA and CSA certified, UL Listed
CFM @ 0.200-In. SP
700
Housing Finish
Polypropylene
Housing Material
Plastic
Rotation
CCW
Motor RPM
1,725 RPM
Max. Inlet Temp. (Deg. F)
140 Degrees F
Blower RPM
1,725 RPM
Includes
Motor Mounting Base
CFM @ 1.000-In. SP
500
CFM @ 0.125-In. SP
600
Phase
1
CFM @ 0.250-In. SP
800
CFM @ 1.250-In. SP
800
CFM @ 1.500-In. SP
1000
Wheel Type
Forward-Curved
dBA @ 5 Feet
58 dBA
Wheel Material
Plastic
Max. Ambient Temp. (F)
-13 Degrees F
Full Load Amps
7.62/3.81 A
Standards
AMCA Air Performance Certified, CSA Certified, UL Listed
Mount Type
Motor Mount
Number of Inlets
1
Flange Type
Non-Flanged
Maximum Static Pressure
2 1/4 in wc
Includes Drive Package
Yes
Frequency
60 Hz
Mounting Orientation
Multiposition
Sound Level
58 dBA @ 5 ft
Corrosion Resistant
Yes
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Assembly
Assembled
Thermal Overload Protection
Yes
Airflow @ 2.000 in SP
400 cfm
Motor Horsepower
3/4 hp
For Air Type
Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature
Airflow @ 0.250 in SP
800 cfm
Maximum Inlet Air Temperature
140 Degrees F
Includes Motor
Yes
Airflow @ 1.250 in SP
800 cfm
Airflow @ 1.000 in SP
500 cfm
Outlet Shape
Round
Minimum Fan Speed
1,725 RPM
Minimum Ambient Temperature
-40 Degrees F
Maximum Fan Speed
1,725 RPM
Motor Speed
1,725 RPM
Airflow @ 0.125 in SP
600 cfm
Motor Frame Designation
71
Airflow @ 1.500 in SP
1,000 cfm
Maximum Ambient Temperature
-13 Degrees F
Drive Type
Direct Drive
Nameplate Voltage
115/230V AC
Current
7.62/3.81 A
Number of Discharge Positions
2
Includes Mounting Hardware
No
OEM Replacement
No

Description

Plastec Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 10 in, Airflow @ 0.125 in SP 600 cfm, Airflow @ 0.250 in SP 800 cfm, Airflow @ 1.000 in SP 500 cfm, Airflow @ 1.250 in SP 800 cfm, Airflow @ 1.500 in SP 1,000 cfm, Airflow @ 2.000 in SP 400 cfm
